2N2222A Transistor
SKU: TRA-0099-B11
Sold by Select Automation
Final price R 1.14
R 0.99 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

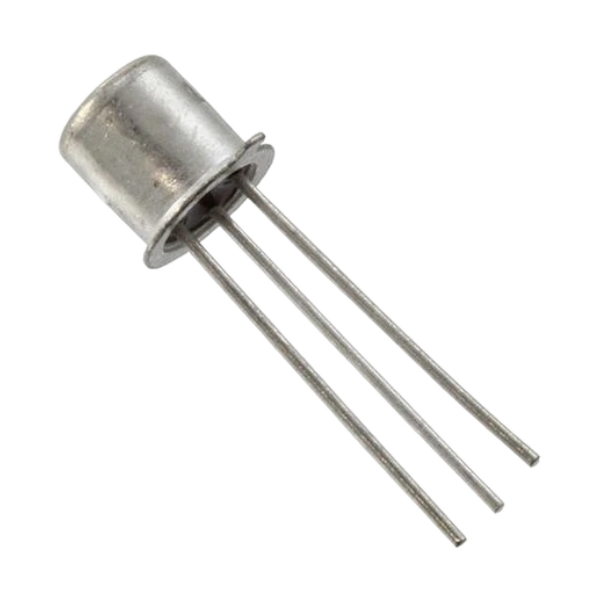

The 2N2222A is a widely used NPN bipolar junction transistor housed in a TO-18 metal can or TO-92 plastic package. Known for its high switching speed, low saturation voltage, and robust current handling, it’s a go-to choice for general-purpose applications in analog and digital circuits. Whether you're driving LEDs, amplifying signals, or switching small loads, the 2N2222A delivers reliable performance across the board.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: NPN bipolar junction transistor
Package: TO-18 (metal can) or TO-92 (plastic)
Collector-Emitter Voltage (VCEO): 30 V
Collector-Base Voltage (VCBO): 60 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 800 mA max
Power Dissipation (PTOT): 625 mW
DC Current Gain (hFE): 100 to 300
Transition Frequency (fT): 250 MHz
Collector-Emitter Saturation Voltage (VCE(sat)): ~0.3 V @ IC = 500 mA
Base Current (IB): ≤ 5 mA
Operating Temperature Range: −55 °C to +150 °C
Applications: Signal amplification, switching, motor control, LED drivers
