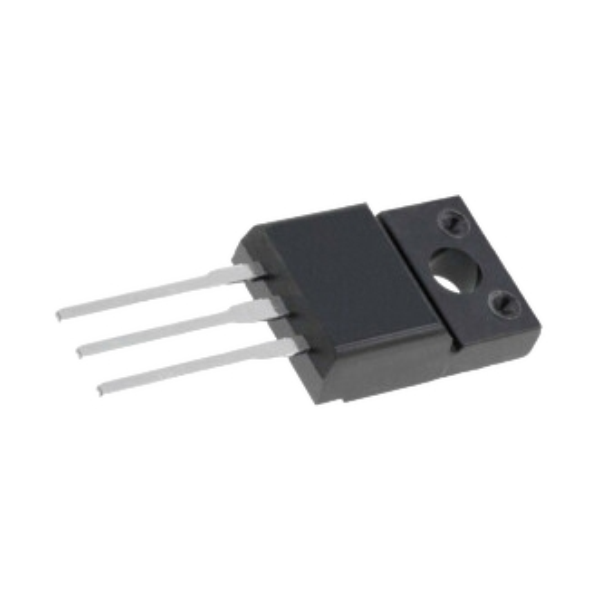

STTH2002CFP Transistor
SKU: TRA-0101-B11
Sold by Select Automation
Final price R 18.95
R 16.48 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The STTH2002CFP is a dual ultrafast recovery rectifier diode from STMicroelectronics, designed for high-efficiency power conversion in switch-mode power supplies (SMPS) and DC-DC converters. Packaged in a TO-220FP insulated case, it features two diodes in a common cathode configuration, offering low reverse recovery time and high surge capability. Its fast switching characteristics make it ideal for freewheeling, snubber, and polarity protection roles in high-frequency circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Dual ultrafast recovery rectifier
Configuration: Common cathode
Polarity: Cathode center-tap
Package: TO-220FP (Full Pack, insulated tab)
Reverse Voltage (VR): 200 V
Forward Current (IF): 20 A total (10 A per diode)
Surge Current (IFSM): 90 A
Forward Voltage Drop (VF): 1.25 V @ 10 A
Reverse Recovery Time (trr): 27 ns
Leakage Current (IR): 10 µA @ 200 V
Mounting Style: Through-hole
Operating Junction Temp: −40 °C to +175 °C
Applications:Switch Mode Power Supplies (SMPS)High-frequency DC-DC convertersFreewheeling and polarity protection
