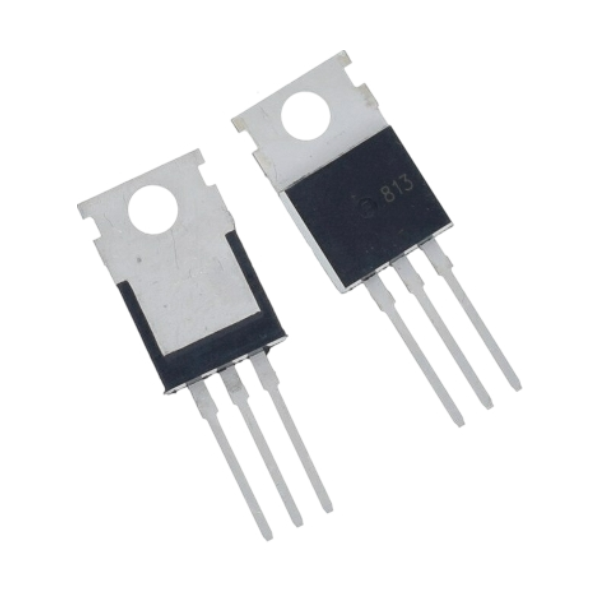

B955 Transistor
SKU: TRA-0102-B11
Sold by Select Automation
Final price R 18.86
R 16.40 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The B955 is a silicon PNP power transistor manufactured by Hitachi, commonly used in audio amplification and power regulation circuits. Housed in a TO-220 package, it features a triple-diffused structure that enhances its performance in high-current, low-voltage applications. Its robust design and reliable switching characteristics make it a staple in industrial and consumer electronics where efficient power handling is key.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: PNP Bipolar Junction Transistor (BJT)
Package: TO-220
Maximum Collector Current (Ic): 5 A
Collector-Emitter Voltage (Vce): −60 V
Collector-Base Voltage (Vcb): −60 V
Emitter-Base Voltage (Veb): −5 V
Power Dissipation (Pc): 30 W
DC Current Gain (hFE): 40 to 320 (at Ic = −0.5 A, Vce = −2 V)
Transition Frequency (fT): ~3 MHz
Operating Temperature Range: −55°C to +150°C
