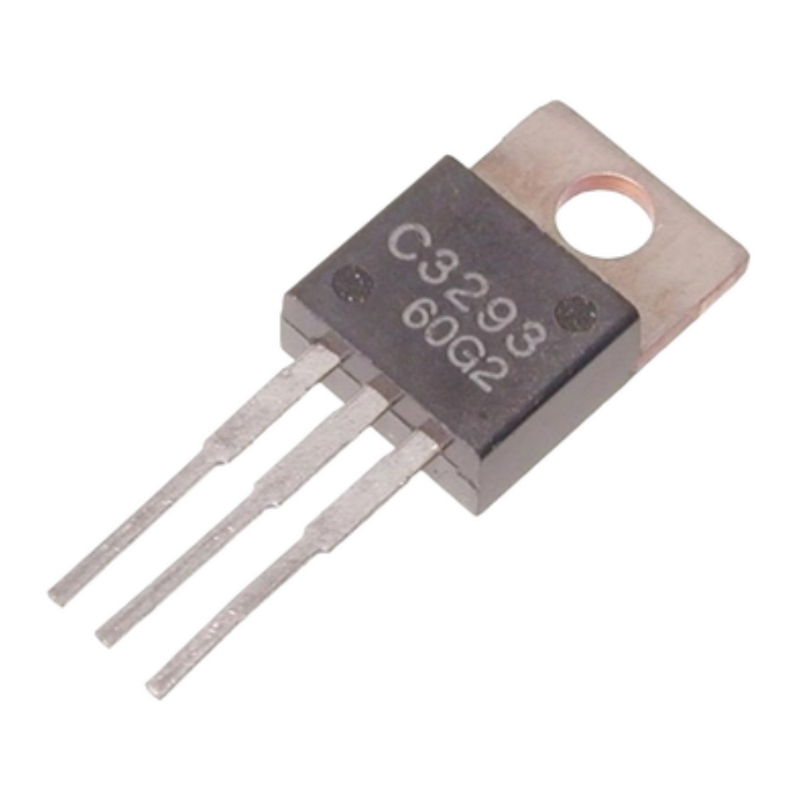

C3293 Transistor
SKU: TRA-0104-B11
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The C3293 (also known as the 2SC3293) is a silicon NPN Darlington power transistor designed for high current switching applications such as motor, printer hammer, and relay drivers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: NPN Silicon Planar Darlington Transistor
Collector-to-Base Voltage (Vcb): 50 V
Collector-to-Emitter Voltage (Vce): 50 V
Emitter-to-Base Voltage (Veb): 6 V
Collector Current (Ic): 2 A (continuous)
Collector Current (Pulse) (Icp): 3 A
Collector Dissipation (Pc): 20 W (at Tc=25°C)
