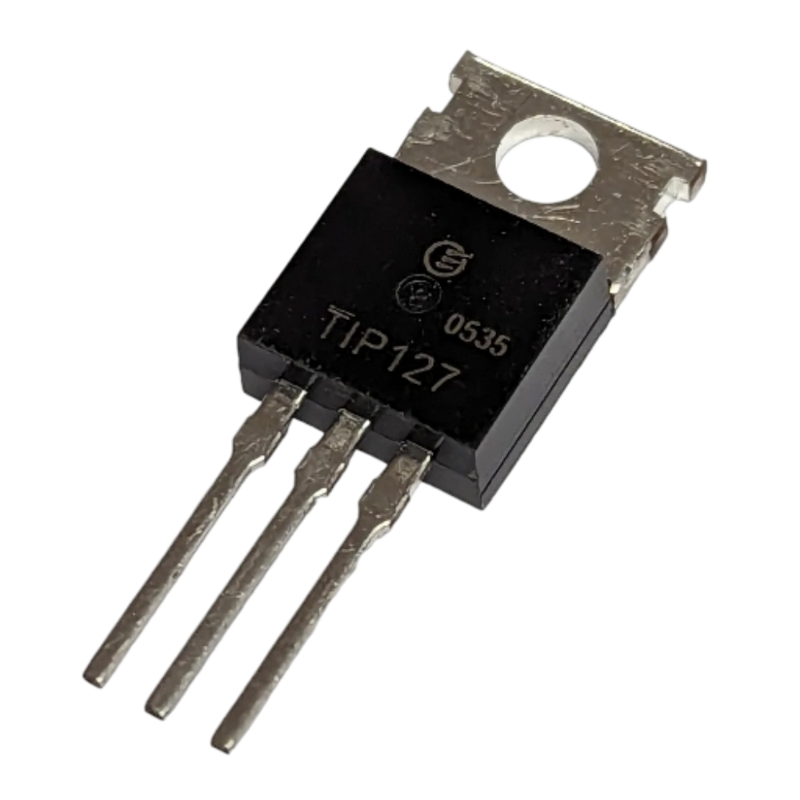

TIP127 TRANSISTOR
SKU: TRA-0108-B11
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The TIP127 is a PNP Darlington power transistor designed for general-purpose amplifier and low-speed switching applications. It combines high current gain with low collector-emitter saturation voltage, making it suitable for driving loads such as motors, relays, and lamps. Packaged in a TO-220 case, it is widely used in industrial and consumer electronics for medium-power switching.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: PNP Darlington transistor
Package: TO-220
Collector-Emitter Voltage (Vce): 100 V max
Collector-Base Voltage (Vcb): 100 V max
Emitter-Base Voltage (Veb): 5 V max
Collector Current (Ic): 5 A max
Power Dissipation (Pc): 65 W
DC Current Gain (hFE): ≥ 1000
Collector-Emitter Saturation Voltage (Vce(sat)): 2.0 V max @ Ic = 3 A
Operating Junction Temperature (Tj): up to 150 °C
