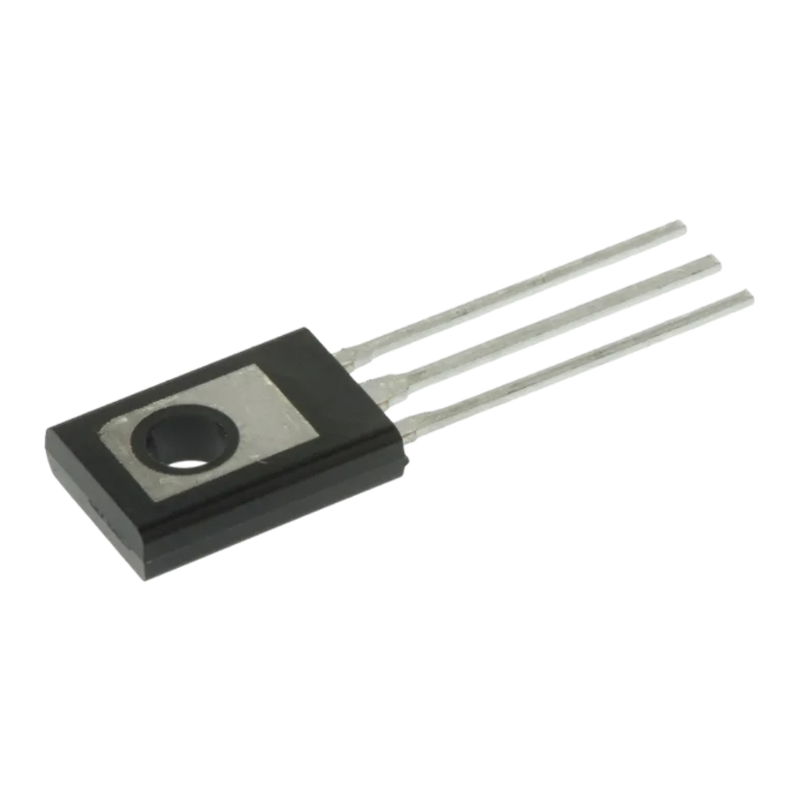

BD135G NPN Transistor, 1.5 A, 45 V, 3-Pin TO-225
SKU: TRA-0109-B11
Price on request
Availability: In Stock (800 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The BD135 is a medium-power NPN silicon transistor designed for audio amplifiers, drivers, and general-purpose switching. Packaged in a TO-225 case, it can handle collector currents up to 1.5 A and voltages up to 45 V, making it suitable for medium-power applications in consumer and industrial electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: NPN silicon transistor
Package: TO-225 (3-pin)
Collector-Emitter Voltage (Vceo): 45 V
Collector Current (Ic max): 1.5 A
Power Dissipation (Pc): 12.5 W
DC Current Gain (hFE): 40–250
Transition Frequency (ft): 50 MHz
Operating Junction Temperature (Tj): -55 °C to +150 °C
