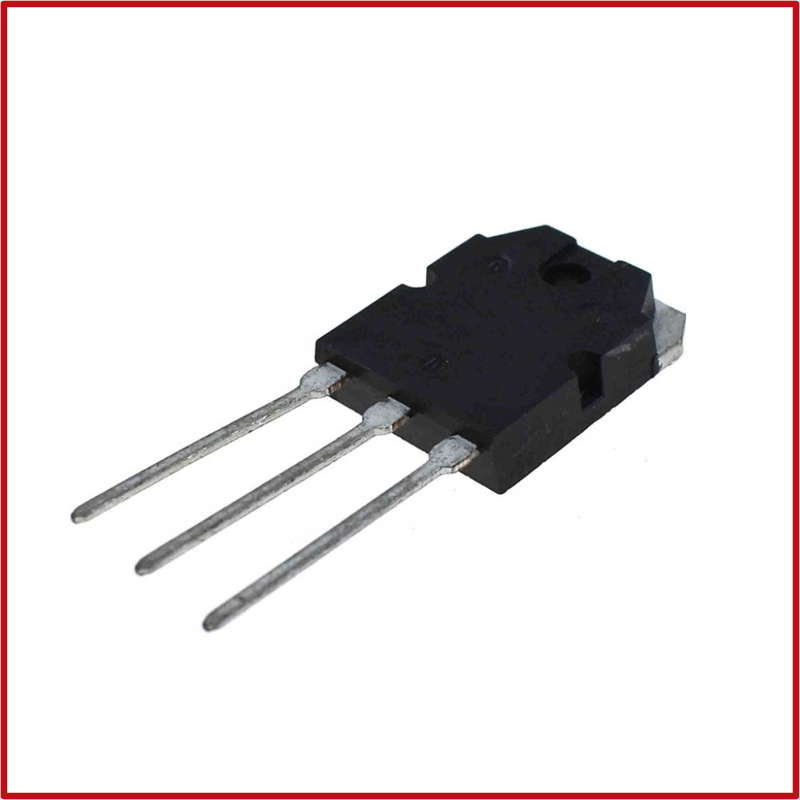

C3284 Transistor
SKU: TRA-0111-B11
Sold by Select Automation
Final price R 28.75
R 25.00 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Technical Specifications:
Maximum Collector Power Dissipation (Pc): 125 W.
Maximum Collector-Base Voltage |Vcb|: 150 V.
Maximum Collector-Emitter Voltage |Vce|: 150 V.
Maximum Collector Current |Ic max|: 14 A.
Max. Operating Junction Temperature (Tj): 175 °C.
Transition Frequency (ft): 60 MHz.
Forward Current Transfer Ratio (hFE), MIN: 90.
Noise Figure, dB: -
