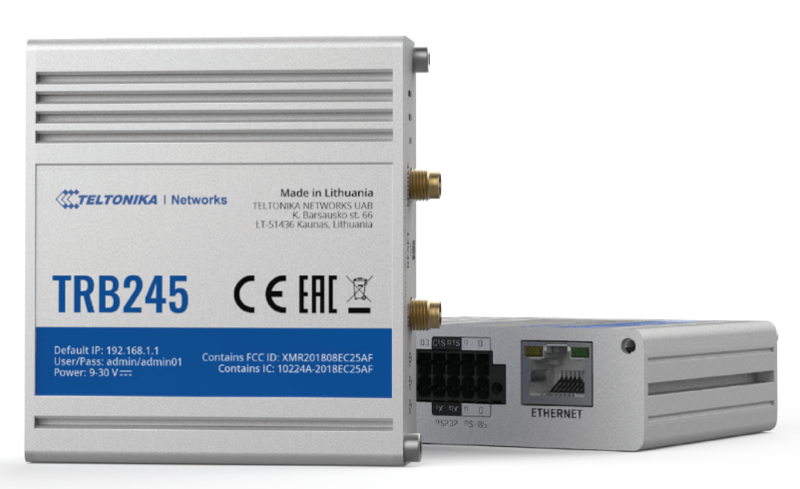

INDUSTRIAL M2M LTE GATEWAY
SKU: TRB245
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
All the functions that are necessary for any enterprise are packed into one Industrial LTE Cat 4 gateway: a fast and dependable internet connection, Ethernet and serial communication combined, a secure power connector, I/O ports, and time synchronization services.
Using RS232 or RS485 interfaces, TRB245 can be utilized to combine historical and contemporary industrial equipment into a single solution.
Data accessibility is guaranteed by a multitude of software features, including SMS control, firewall, openVPN, IPSec, and RMS.
Stable connectivity is guaranteed even in the event of a primary connection loss thanks to dual SIM capabilities with auto-failover and a backup WAN.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 4G/LTE (Cat 4), 3G, 2G.
CPU: Qualcomm QCA9531, MIPS 24kc, 650 MHz.
Storage: 16 MB Flash.
Memory: 64 MB RAM.
Powering option: 16-pin terminal, 9-30 VDC.
SIM: 2 x Internal SIM holders (2FF).
Antenna connectors: 1 x SMA for mobile, 1 x SMA for GPS.
Ethernet: 1 x RJ45 port, 10/100 Mbps.
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS.
Inputs/Outputs: On 16-pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input.
Serial: 1 x RS232, 1 x RS485.
Status: LEDs 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power.
Operating temperature: -40 °C to 75 °C.
Housing: Aluminium housing with DIN rail mounting option.
Dimensions (W x H x D): 83 x 25 x 74.2 mm.
Weight: 165 g.
