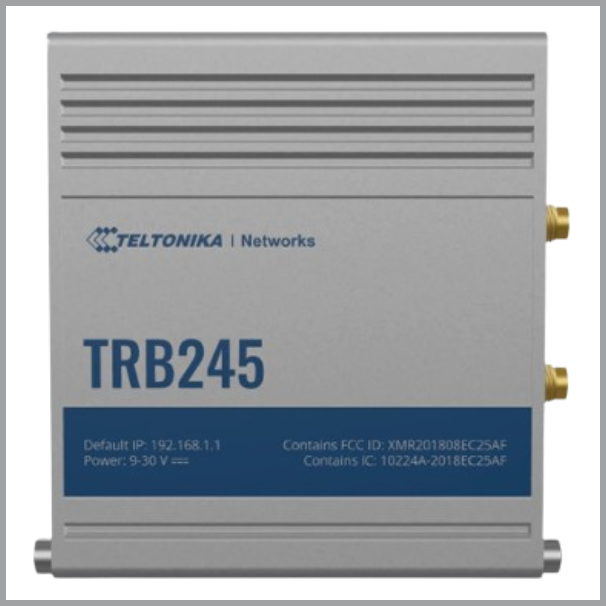

TRB245 LTE Cat 4 Gateway
SKU: TRB24500000
Sold by Select Automation
Final price R 4,615.27
R 4,013.28 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Teltonika TRB245 is an industrial M2M LTE Cat 4 gateway intended for dependable cellular connectivity and remote monitoring/control applications.
It supports 4G LTE, 3G, and 2G networks, as well as dual SIM, RS232/RS485 serial interfaces, Ethernet, and programmable digital/analogue I/O.
It is well-suited for industrial automation, telemetry, remote equipment monitoring, and Internet of Things applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Brand: Teltonika Networks.
Model: TRB245.
Product Type: Industrial LTE Cat 4 M2M Gateway.
Mobile Network: 4G LTE Cat 4 / 3G / 2G.
LTE Speed: Up to 150 Mbps download / 50 Mbps upload.
SIM: Dual SIM, 2FF.
SIM Switching: Automatic failover and backup WAN.
Ethernet: 1 × RJ45, 10/100 Mbps.
Serial Interfaces: 1 × RS232 and 1 × RS485.
Digital I/O: 3 × configurable digital input / open-collector output.
GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS.
Mobile Antenna Connector: 1 × SMA.
GNSS Antenna Connector: 1 × SMA.
Power Input: 9–30 V DC.
Power Connection: 16-pin terminal block.
CPU: Qualcomm QCA9531, MIPS 24Kc, 650 MHz.
Flash Memory: 16 MB.
RAM: 64 MB.
Operating System: RutOS, based on OpenWrt Linux.
Management: Web UI, CLI, SSH, SNMP, MQTT, MODBUS and RMS.
Network Protocols: TCP, UDP, IPv4, IPv6, DHCP, DNS, HTTP/HTTPS, FTP, SMTP, SSH and others.
Modbus: Modbus RTU, TCP Master/Slave, RTU Gateway and Modbus over MQTT.
Housing: Aluminium.
Mounting: DIN-rail mounting option.
Operating Temperature: -40°C to +75°C.
Dimensions: 83 × 25 × 74.2 mm.
Weight: 165 g.
