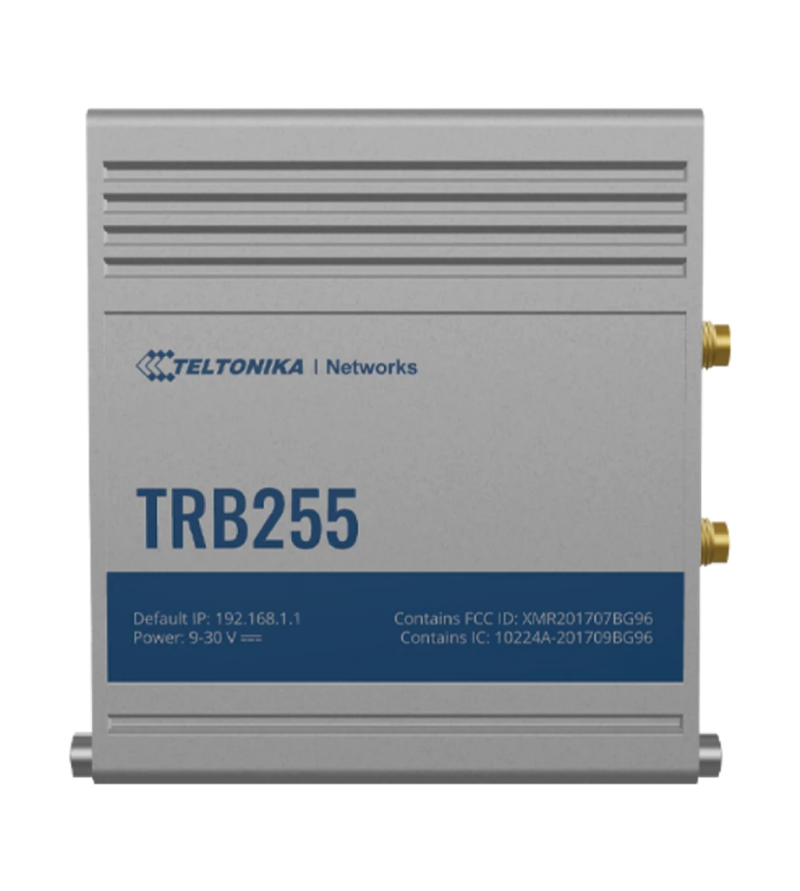

Industrial M2M Gateway, CatM1, LTE (Cat M1) / NB-IoT / EGPRS
SKU: TRB255
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RB255 can be used to combine legacy and contemporary industrial equipment into a single solution through Ethernet, RS232, and RS485 interfaces.
This NB-IoT gateway and industrial LTE Cat M1 is backwards compatible with EGPRS (2G) networks. It can still be utilized with a 2G network, however if it is shut down, LPWAN connectivity choices are an option.
Numerous industrial and networking features, including Modbus, SMS control, firewalls, OpenVPN, and more, are available with the TRB255.
The Teltonika Networks Remote Management System (RMS) is compatible with this product.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 4G/LTE (Cat M1), NB-IoT, 2G.
CPU: Qualcomm QCA9531, MIPS 24kc, 650 MHz.
Storage: 16 MB Flash.
Memory: 64 MB RAM.
Powering option: 16-pin terminal, 9-30 VDC.
SIM: 2 x Internal SIM holders (2FF).
Antenna connectors: 1 x SMA for mobile, 1 x SMA for GPS.
Ethernet: 1 x RJ45 port, 10/100 Mbps.
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS.
Inputs/Outputs: On 16-pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input.
Serial: 1 x RS232, 1 x RS485.
Status LEDs: 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power.
Operating temperature: -40 °C to 75 °C.
Housing: Aluminium housing with DIN rail mounting option.
Dimensions (W x H x D): 83 x 25 x 74.2 mm.
Weight: 165 g.
