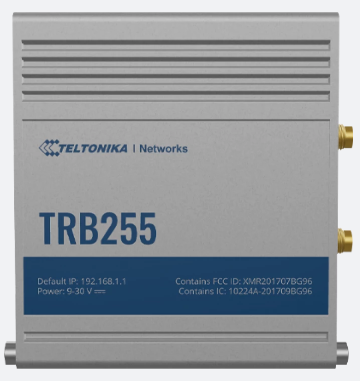

TRB225 LTE M1/NB-loT Gateway
SKU: TRB2550000000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485 & Ethernet interfaces.
This industrial LTE Cat M1 & NB-IoT gateway is backward compatible to EGPRS (2G) networks.
It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Mobile 4G/LTE (Cat M1), NB-IoT, 2G
CPU Qualcomm, MIPS 24Kc, 650 MHz
Memory 16 MBytes Flash, 64 MBytes RAM
Powering option 16pin terminal, 9-30 VDC
SIM 2 x Internal SIM holders (2FF)
Antenna connectors 1 x SMA for mobile, 1 x SMA for GPS
Ethernet 1 x 10/100 Ethernet port
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs On 16pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input
Serial 1 x RS232, 1 x RS485
Status LEDs 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 165 g
