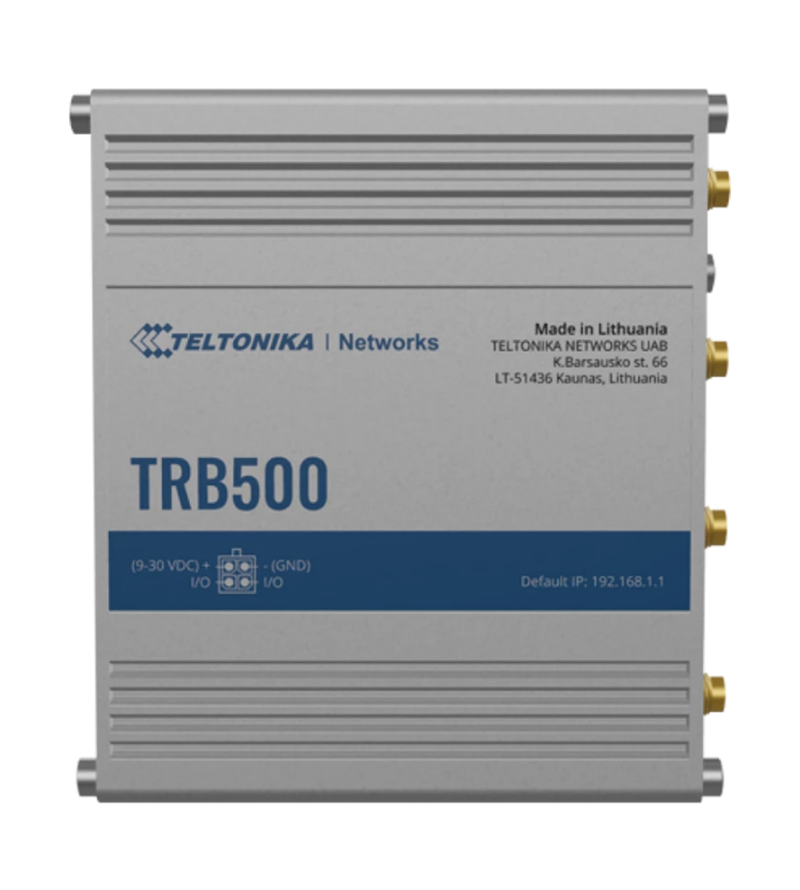

Industrial 5G Gateway
SKU: TRB500
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With two programmable inputs and outputs and a Gigabit Ethernet interface, the TRB500 gateway is a small, energy-efficient industrial gateway that enables high-level customization and the execution of multiple scenarios.
With the help of four external antennas that enable 4x4 MIMO, this device provides 5G network speeds for mission-critical infrastructures with extremely low latency. It also ensures high data throughput.
The operating system that comes with the TRB500 is RutOS, which offers sophisticated security measures and is compatible with the Remote Management System (RMS) for simple remote control and monitoring capabilities.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL.
CPU: Single core ARM Cortex A7, 1,5 GHz.
Flash Storage: 512 MB.
RAM: 256 MB.
Powering option: 4-pin power socket, 9-30 VDC.
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V.
Antenna connectors: 4 x SMA for Mobile.
Ethernet: 1x 10/100/1000 Mbps Ethernet port.
Inputs/Outputs: On 4-pin socket: 1 x Digital input, 1 x Digital open collector output Other 1 x Micro USB slave, 1 x Grounding screw.
Status LEDs: 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED.
Operating temperature: -40° C to 75° C.
Housing Aluminium: housing, DIN rail (can be mounted on two sides), flat surface placement.
Dimensions (W x H x D): 100 x 30 x 93,4 mm.
Weight: 241g.
