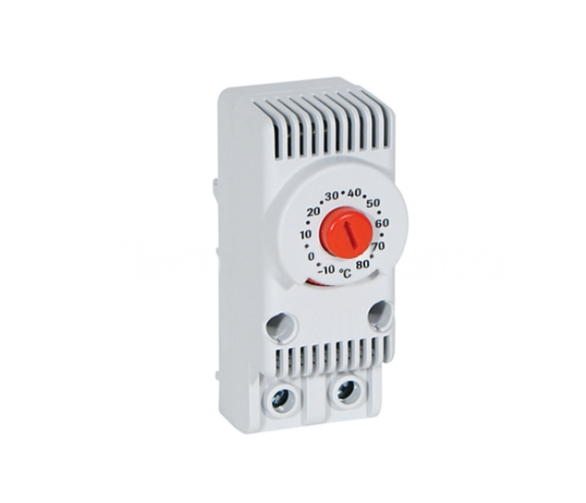

RAIL MOUNT PANEL THERMOSTAT 1xNC
SKU: TRT-10A230V-NC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The TRT-10A230V-NC Electromechanica RAIL MOUNT PANEL THERMOSTAT is intended to regulate the temperature inside electrical enclosures.
It employs a thermostatic bimetal sensor with a snap-action feature to control HVAC systems and turn on signalling devices.
This thermostat is perfect for a variety of applications because it is small and simple to install.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: TRT series.
Supply Voltage: 110 - 250V AC.
Temperature Range: -10°C to +80°C.
Configuration: 1 x NC (Normally Closed).
Mounting: DIN rail (EN 60715) mountable.
Dimensions:
Height: 86 mm.
Width: 35 mm.
Depth: 65 mm.
Enclosure Material: PA66 self-extinguishing to UL 94V-0.
Connection Type: Terminal block.
Compliance:
CE.
cURus.
UKCA.
Features:
Small, compact size.
Bimetal thermostatic sensor with snap action.
Ideal for regulating the temperature within enclosures.
Able to be used for signalling device activation or for controlling ventilation and heating.
IP20 level of protection.
A lifespan of one hundred thousand cycles.
By maintaining the ideal temperature inside your electrical enclosures, this thermostat will increase the dependability and lifespan of your systems.
