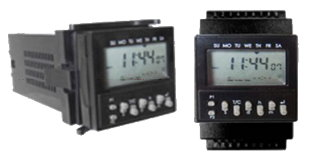

Time Switch VDC Din Rail Mounting communication
SKU: TS-4848CRDC-D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
TC-PRO 4848x Digital Time Switch:
BSC and ADV for selection
Two independent output circuits
20 banks (groups) of operation times
Cyclic operation and pulse operation
Temporary holiday settings
Summertime adjustment
Manual operation to control output ON/OFF
Override and automatic return function.
Key protection function
Data information reserved > five years.
Support Modbus Protocol.
Free PC software “Yotta Utility"
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 24 VDC.
Voltage range: 85% - 120% rated supply voltage
Storage temperature: -25~65°C (with no icing or condensation)
Operation temperature: -10~55°C (with no icing or condensation)
Ambient operation humidity: 25% ~ 85%
Case colour: Black
Installation: DIN rail or Flush mounting
Interfaces: RS-232/485/422
Modbus Support: Modbus RTU + ASCɪɪ
Power consumption: Nearly 0.96W.
Control outputs:
Relay contact output: 5A at 250 VAC.
Transistor output: NPN, Max. 10ma at 30VDC.
