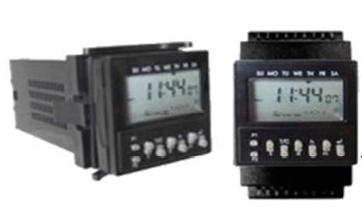

Time Switch VDC Flush Mounting
SKU: TS-4848SRDC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
TC-PRO 4858x Digital Timer Switch:
BSC and ADV for selection
Two independent output circuits
20 banks (groups) of operation times
Cyclic operation and pulse operation
Temporary holiday settings
Summer time adjustment
Manual operation to control output ON/OFF
Override and automatic return functions.
Key protection function
Data information is reserved for five years.
Support Modbus Protocol
Free PC software "Yotta Utility"
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 24 VDC
Voltage range: 85% ~ 120% rated supply voltage
Storage temperature: -25 ~ 65°C (with no icing or condensation)
Operating temperature: -25 ~ 65°C (with no icing or condensation)
Ambient operation humidity: 25% ~ 85%
Case color: black
Installation: DIN rail or flush mounting
Power consumption: nearly 0.96W
Control outputs:
Relay contact output: 5A at 250 VAC
Transistor output: NPN, max. 100 mA at 30 VDC
