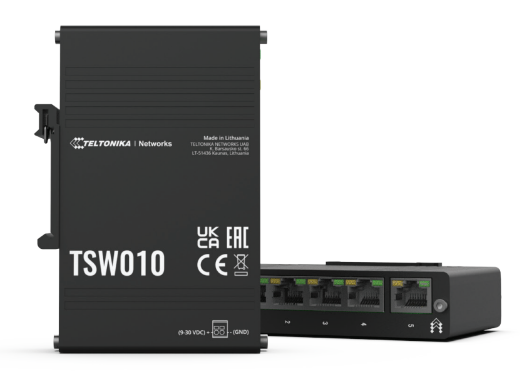

DIN RAIL SWITCH
SKU: TSW010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The most economical method for adding network access to several Ethernet devices is provided by TSW010.
Stable and dependable connectivity is ensured by five 10/100 Ethernet ports, which is adequate for the majority of industrial applications where high throughput is not needed.
It is appropriate for professional solutions because to its robust architecture and wide range of supported power supply voltages (9-30 V).
Simple installation in a variety of industrial settings is made possible by its compact size and integrated DIN rail mount.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Power supply: 2-pin industrial DC power socket, 9 - 30 VDC.
Power consumption Idle: 0.3 W / Max: 0.9 W.
Status LEDs: 1 x Power LED, 10 x LAN status LEDs.
Ethernet: 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function.
Ingress protection rating: IP30.
Operating temperature: -40 °C to 75 °C.
Housing; Anodized aluminium housing and panels.
Dimensions: 113.1 x 27.4 x 80.5 mm.
Weight 146.5 g.
Installation: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement.
