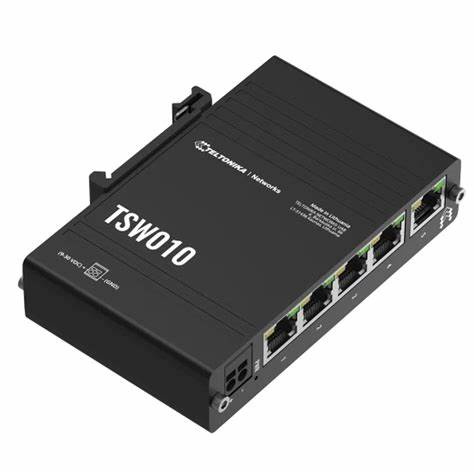

10/100 5 Port Switch
SKU: TSW010000000
Sold by Select Automation
Final price R 766.22
R 666.28 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 10/100 5 Port Switch TSW010000000 is an Ethernet network switch designed to provide fast and reliable connectivity for devices within a local area network (LAN).
It supports 10/100 Mbps speeds on all 5 ports, making it suitable for small office or home network setups.
The switch is plug-and-play, with no configuration required, and offers easy network expansion by allo
Buy currently uses Select Automation shop pricing and checkout.
Ethernet:
ETH: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover.
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3x, 802.3az.
Performance Specifications:
Bandwidth (non-blocking): 1 Gbps.
MAC address table size: 2K entries.
Jumbo frame support: 2048 bytes.
Power:
Connector: 2-pin industrial DC power socket.
Input voltage range: 9 – 30 VDC.
PoE (passive): Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC.
Power consumption: Idle: 0.3 W / Max: 0.9 W.
Physical Interfaces:
Ethernet: 5 x RJ45 ports, 10/100 Mbps.
Status LEDs: 1 x Power LED, 10 x ETH status LEDs.
Physical Specification:
Physical Specification: Aluminium housing.
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm.
Weight: 146.5 g.
Mounting options: Integrated DIN rail bracket; wall mount and flat surface.
Operating Environment:
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress Protection Rating: IP30.
