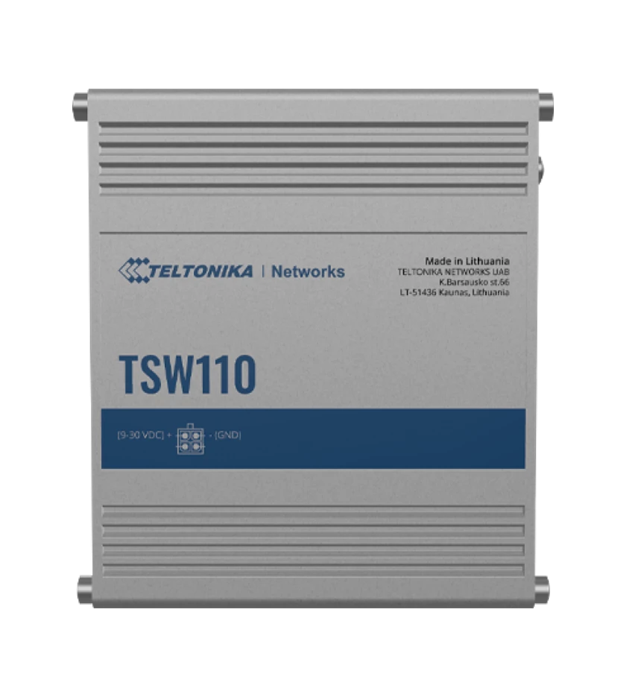

L2 Unmanaged Switch
SKU: TSW110
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Layer 2 unmanaged switch TSW110 is a more straightforward variant of our previous product, TSW100.
able to be powered via the first ETH port.
Five 10/100/1000 Mbps Ethernet ports are included for a cost-effective high-bandwidth option.
It provides a broad range of voltages (9–30 V) for supported power supplies.
Perfect for dependable data connections in professional high bandwidth applications.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Powering option: 4-pin power socket, 9-30 VDC
Power consumption: Idle: < 0.4 W, Max: < 1.8 W
Ethernet: 5 x 10/100/1000 Ethernet ports
Status LEDs: 10 x Ethernet, 1 x Power
Ingress protection rating: IP30
Operating temperature: -40 °C to 75 °C
Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
Dimensions: 100 x 30 x 85 mm
Weight: 227 g
