INDUSTRIAL UNMANAGED POE+ SWITCH
SKU: TSW200
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

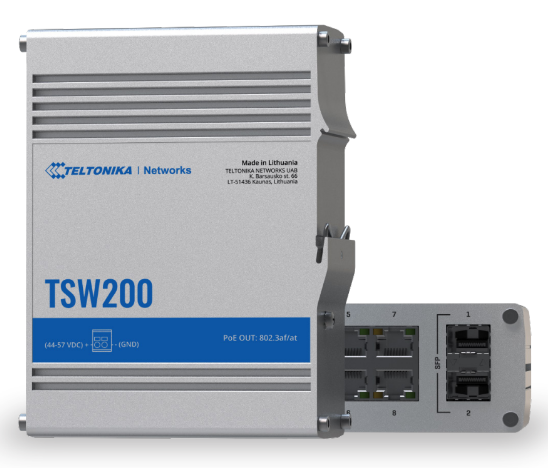

Teltonika Networks offers an industrial unmanaged switch called SW200.
With two SFP connectors for long-distance fiber optic communication and eight Gigabit Ethernet ports that support IEEE802.3af and IEEE802.3at standards for power-over-ethernet, the TSW200 is well-equipped.
Under the category of power source equipment (PSE), it facilitates the centralization of the power supply, offering a maximum of 30 watts per port and minimizing the installation effort.
Its 10/100/1000 Mbps Ethernet ports offer your industrial Ethernet network an affordable high-bandwidth solution.
This robust unmanaged industrial switch is perfect for high-bandwidth professional applications where a dependable power source and data connection are required.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Powering option: 2 pin, push-in, terminal block.
Input voltage range: 7-57 VDC.
Input voltage range for PoE: 44-57 VDC.
Power consumption Idle: < 2 W, Max: < 9 W (no PoE device connected).
PoE standard: 802.3af/at (up to 30 W per port, total power budget - 240 W).
Ethernet: 8 x 10/100/1000 Mbps Ethernet ports.
SFP: 2 x SFP port for Optical interface.
Status LEDs: 16 x Ethernet, 1 x Power, 2 x SFP activity.
Ingress protection rating: IP30.
Operating temperature: -40 °C to 75 °C.
Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability.
Dimensions: 132 x 44.2 x 95.1 mm.
Weight: 456 g.
Installation: Desktop, wall, or DIN Rail mountable (additional kit needed).
PoE operates properly only when connected power supply outputs 44 V or higher voltage.
