Unmanaged Gigabit Ethernet Switch With SFP
SKU: TSW210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

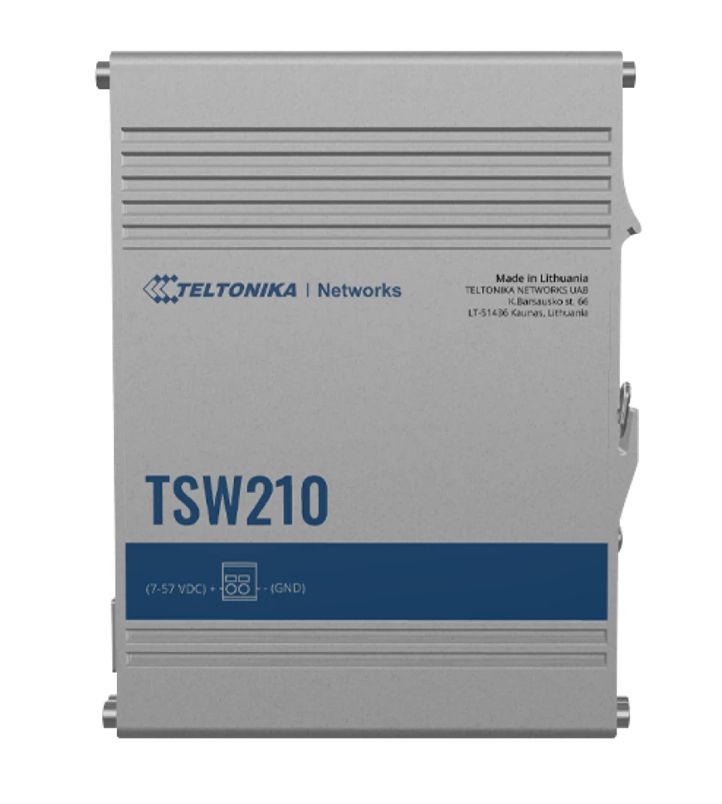

An unmanaged industrial switch for resource centralization is the TSW210.
outfitted with eight Gigabit Ethernet ports that can handle download and upload speeds of up to 1000 Mbps and two SFP connections for long-distance fibreoptic connectivity.
The TSW210 is ideal for industrial environments because of its strong, resilient aluminium body and options for surface and DIN rail mounting.
Industrial DC power socket with two pins that accepts voltages between 7 and 57 VDC.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Power connector: 2-pin industrial DC power socket.
Input voltage range: 7-57 VDC.
Power consumption: Idle: 1.03 W, Max: 3.71W.
Ethernet: 8 x 10/100/1000 Mbps Ethernet ports.
SFP: 2 x SFP ports for Optical interfaces.
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az.
Status LEDs: 16 x Ethernet, 1 x Power, 2 x SFP activity.
Ingress protection rating: IP30.
Operating temperature: -40 °C to 75 °C.
Housing: Aluminium housing with wall or DIN rail mounting options and grounding capability.
Dimensions: 132 x 44.2 x 95.1 mm.
Weight: 500 g.
Installation: Desktop, wall, or DIN rail mountable (additional kit needed).
