Din Rail Ethernet Switch, 2-pin power socket
SKU: TSW304
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

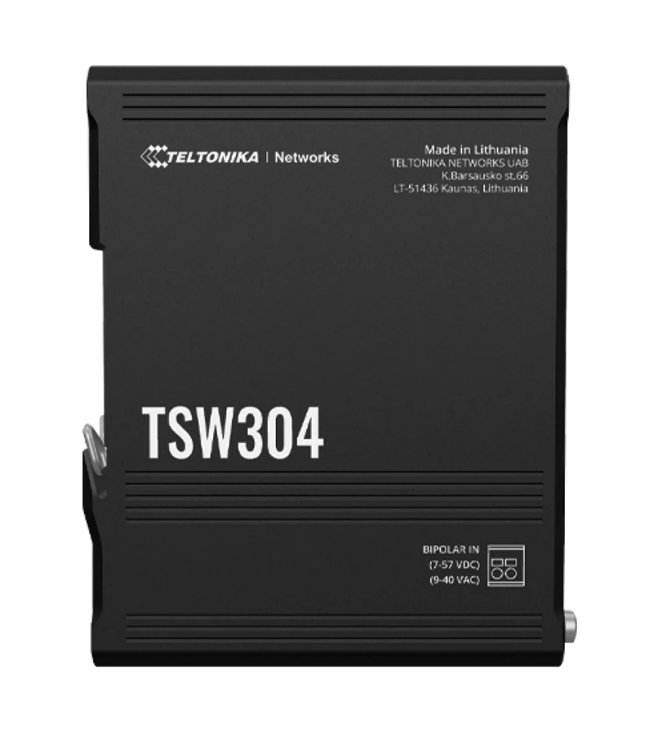

The TSW304 is the first unmanaged switch from Teltonika Networks that has a built-in, integrated DIN rail mount.
Four Gigabit Ethernet ports that support IEEE 802.3, IEEE 802.3u, and IEEE 802.3az Ethernet standards are included in the configuration.
The TSW304 is a tiny device with an integrated DIN mount and a shock-resistant shell, designed with ease of installation in mind.
10/100/1000 Mbps Ethernet ports offer dependable data throughput at a reasonable cost with high bandwidth solutions.
Several power supply voltage ranges (7-57 VDC and 9-40 VAC) are offered by the 2-pin industrial power socket.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Powering option: 2-pin power socket, 7 - 57 VDC / 9 - 40 VAC
Power consumption: Idle: < 0.26 W, Max: < 1.44 W
Ethernet: 4 x 10/100/1000 Ethernet ports
Status LEDs: 8 x Ethernet, 1 x Power
Ingress protection rating: IP30
Operating temperature: -40 °C to 75 °C
Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
Installation: DIN Rail mountable (no additional kit needed)
