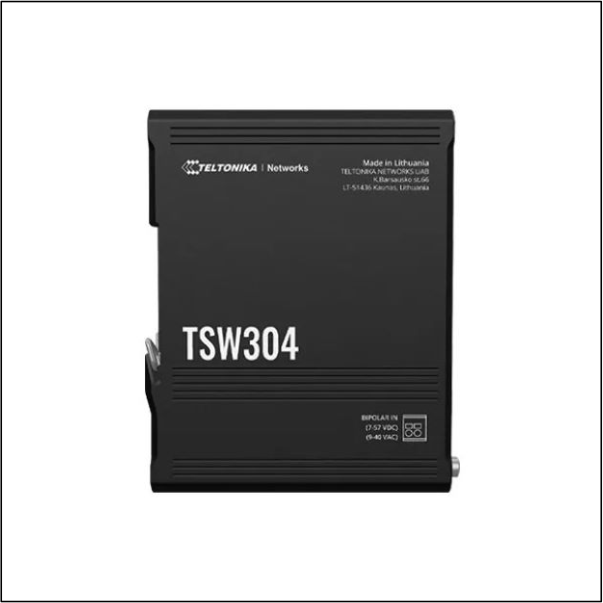

TSW304 Din Rail Switch 4 10/100/1000 Ports
SKU: TSW304000000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind.
This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet.
Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Powering option: 2-pin power socket, 7 - 57 Vdc / 9 - 40 Vac
Power consumption: Idle: < 0.26 W, Max: < 1.44 W
Ethernet: 4 x 10/100/1000 Ethernet ports
Status LEDs: 8 x Ethernet, 1 x Power
Ingress protection rating: IP30
Operating temperature: -40 °C to 75 °C
Housing Aluminium housing with wall or DIN rail mounting option and grounding capability
Installation: DIN Rail mountable (no additional kit needed)
