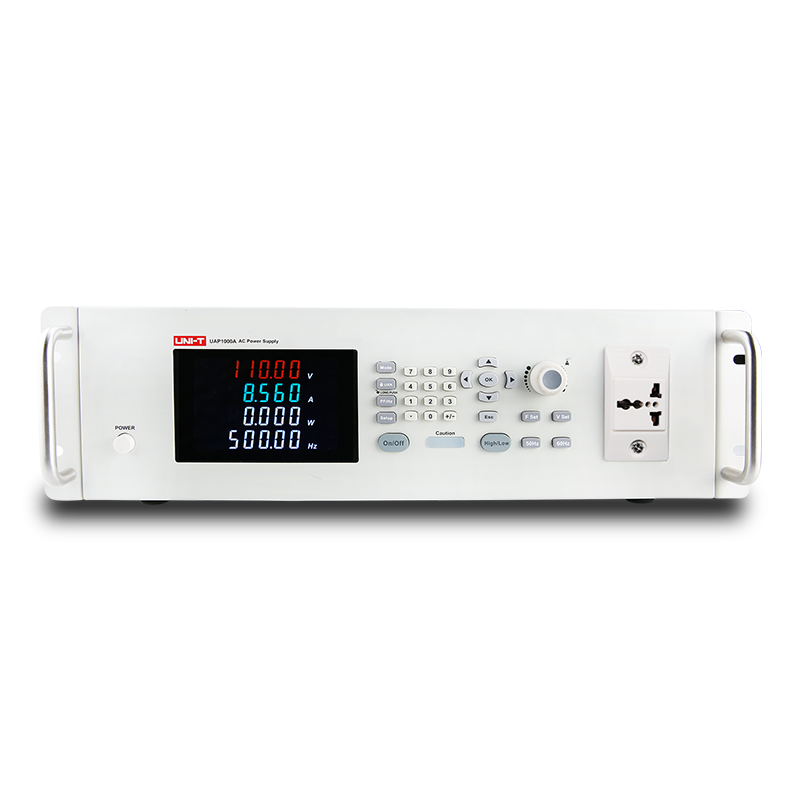

Programmable AC Power Source, UAP500A: 500VA, 10mV/1mA, 1φ2W
SKU: UAP500A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UAP500/1000A Series, Programmable AC Power Source:
A digital display screen with a broad measurement range and resolution of 10mV / 1mA is included with the UAP500 / 1000A series programmable AC variable frequency power supply.
Desk type and system type are features of the UAP500 and 1000A series.
It can be integrated into a test system with unique features to satisfy the measurement requirements on various occasions and mixed with other instruments as needed.
The panel keyboard allows users to alter the software, which is quite convenient.
It is a product that replaces a standard programmable power supply and offers performance benefits at a high cost.
There are four windows visible.
Presets in nine groups.
Control by remote.
Keys with numbers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UAP500/1000A Series, Programmable AC Power Source.
Capacity 500VA.
Generation mode SPWM (Sinusoidal pulse width modulation).
Input Voltage 220V±10%.
Input Frequency 47Hz - 63Hz.
Output Voltage 0-150VAC / 0-300VAC AUTO.
Output Frequency 45-250Hz(0.01Step).
Display Voltage Vrms, Current Arms, Frequency Fre, Power Wattage, Power factor PF.
Storage Memory M1-M9 (V_F_A).
Output protection Over Current, Over Temp, Overload, Short Circuit.
Communication interface RS232C.
Power AC 220V±10% ,47Hz-63Hz.
Display VA code breaking screen.
Product size 430mm×132mm×483mm.
