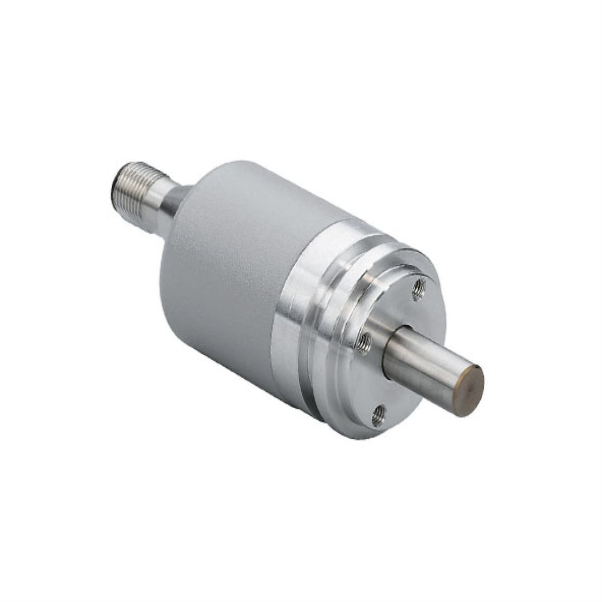

Absolute Magnetic Rotary Encoder Heavy Duty Analog 4-20mA Output
SKU: UCD-AC005-0013-D10D-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The UCD-AC005-0013-D10D-PAM Posital Fraba Absolute Magnetic Rotary Encoder is made for demanding industrial applications that need accurate position feedback.
With its 4–20mA analog current output, this encoder can be used with a variety of control systems. High durability and resilience to environmental elements including dust, moisture, and vibrations are guaranteed by its magnetic sensing technology.
This sturdy encoder offers long-term stability and accuracy and is designed to operate dependably in demanding industrial settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Analog Current (4-20mA).
Supply Voltage: 8 – 32 VDC.
Current Consumption: Typical 20 mA @ 24 V (no load).
Start-Up Time: < 500 ms.
Max Load Resistance: 500 Ω.
Analog Accuracy: ±20 µA @ 20 mA.
Linearity: 0.15%.
Settling Time: 32 ms (from min value to max value jump).
Reverse Polarity Protection: Yes.
Short Circuit Protection: Yes.
EMC Compliance: Emitted Interference DIN EN 61000-6-4, Noise Immunity DIN EN 61000-6-2.
MTTF: 278.3 years @ 40 °C.
Sensor Specifications:
Technology: Magnetic.
Resolution: Single turn 13 bit.
Accuracy (INL): ±0.0878° (≤ 12 bit).
Code: Analog Current 4 – 20 mA.
Cycle Time: Base Sensor < 100 µs.
Minimum Measurement Range: 0 – 11.25°.
Resolution of Output: Max. 13 bits over entire measuring range.
Environmental Specifications:
Protection Class (Shaft and Housing): IP68/IP69K.
Operating Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Mechanical Data:
Housing Material: Steel.
Housing Coating: Cathodic corrosion protection (>720 hrs salt spray resistance).
Flange Type: Synchro, ø 36 mm Heavy Duty.
Flange Material: Aluminium.
Shaft Type: Solid, Length = 20 mm.
Shaft Diameter: ø 10 mm (0.39").
Shaft Material: Stainless Steel V4A (1.4112, 440 B), hardened.
Max. Shaft Load: Axial 180 N, Radial 180 N.
Minimum Mechanical Lifetime: 10 (180 N / 180 N), 15 (150 N / 150 N), 30 (100 N / 100 N) revolutions.
Friction Torque: ≤ 5 Ncm @ 20 °C (7.1 oz-in @ 68 °F).
Max. Permissible Mechanical Speed: ≤ 6000 1/min.
Shock Resistance: ≤ 200 g (half sine 11 ms, EN 60068-2-27).
Permanent Shock Resistance: ≤ 30 g (half sine 16 ms, EN 60068-2-29).
Vibration Resistance: ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6).
Length: 56 mm (2.20").
Weight: 210 g (0.46 lb).
Electrical Connection:
Connection Orientation: Axial.
Connector: M12, Male, 5 pin, a coded.
