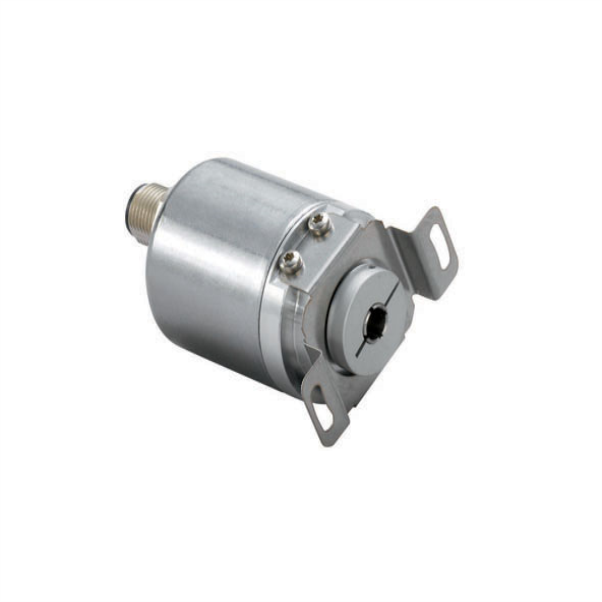

Absolute Magnetic Rotary Encoder Industrial Duty Analog 4-20mA Output
SKU: UCD-AC005-0013-VCS0-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An industrial-duty absolute magnetic rotary encoder for accurate position measurement is the Posital Fraba UCD-AC005-0013-VCS0-PAM.
This encoder is appropriate for a range of industrial applications that demand precise and dependable feedback because of its analog 4–20mA output.
Its sturdy design guarantees longevity and reliable operation even in challenging conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: UCD-AC005-0013-VCS0-PAM.
Type: Absolute magnetic rotary encoder.
Output Signal: Analog 4-20mA.
Supply Voltage: 8-32 V DC.
Current Consumption: Typical 20 mA @ 24 V (no load).
Max Load Resistance: 500 Ω.
Analog Accuracy: ±20 μA @ 20 mA.
Linearity: 0.15%.
Resolution: 13 bits (8192 steps per revolution).
Protection Class: IP65 (shaft and housing).
Operating Temperature: -40°C to +85°C.
Housing Material: Steel with cathodic corrosion protection.
Shaft Diameter: 12 mm hollow shaft.
Max. Shaft Load: Axial 40 N, Radial 110 N.
Max. Rotational Speed: 12,000 rpm.
Shock Resistance: 100 g, 6 ms.
Vibration Resistance: 10 g, 10-2000 Hz.
Connection Orientation: Axial.
Connector: M12, Male, 5 pin, A-coded.
Weight: 145 g.
