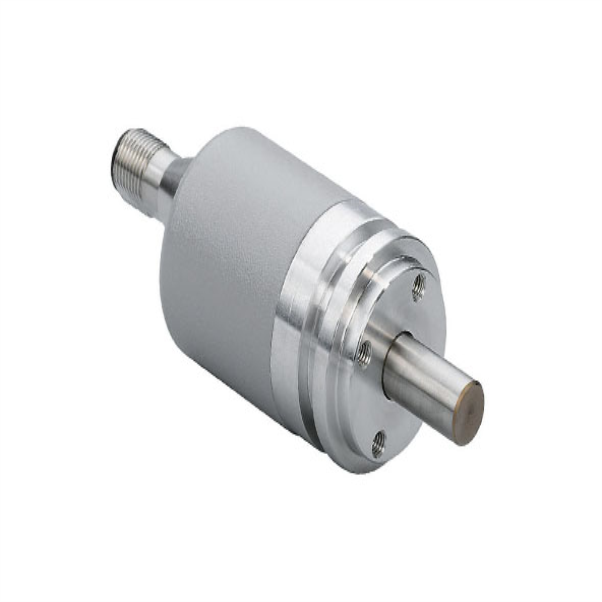

Multi Turn Absolute Magnetic Rotary Encoder Heavy Duty Analog 4-20mA Output
SKU: UCD-AC005-0413-D10D-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A sturdy and accurate device made for demanding industrial applications is the Posital Fraba Multi Turn Absolute Magnetic Rotary Encoder Heavy Duty Analog 4-20mA Output, model UCD-AC005-0413-D10D-PAM.
This encoder provides precise multi-turn position readings by utilizing cutting-edge magnetic technology.
With a housing and shaft made of stainless steel, it has a sturdy design that makes it resistant to severe weather conditions.
The encoder may be integrated into a variety of control systems because it has an analog 4–20mA output.
This encoder's excellent resolution and dependability make it perfect for applications that need accurate and consistent position control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Analog Current 4-20mA.
Supply Voltage: 8 – 32 VDC.
Current Consumption: Typical 20 mA @ 24 V (no load).
Power Consumption: ≤ 2.5 W.
Start-Up Time: < 500 ms.
Protection Class: IP68/IP69K (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Resolution: 13-bit single turn, 4-bit multiturn.
Accuracy: ±0.0878° (≤ 12 bit).
Shaft Diameter: 10 mm.
Shaft Material: Stainless Steel V4A (1.4404, 316 L).
Max. Shaft Load: Axial 300 N, Radial 300 N.
Mechanical Lifetime: Up to 200 x 10^8 revolutions.
Shock Resistance: ≤ 200 g (half sine 11 ms).
Vibration Resistance: ≤ 30 g (10 Hz – 1000 Hz).
Housing Material: Stainless Steel V4A (1.4404, 316 L).
Connection Type: Radial Connector M12, Male, 5 pin, a coded.
Weight: 410 g.
