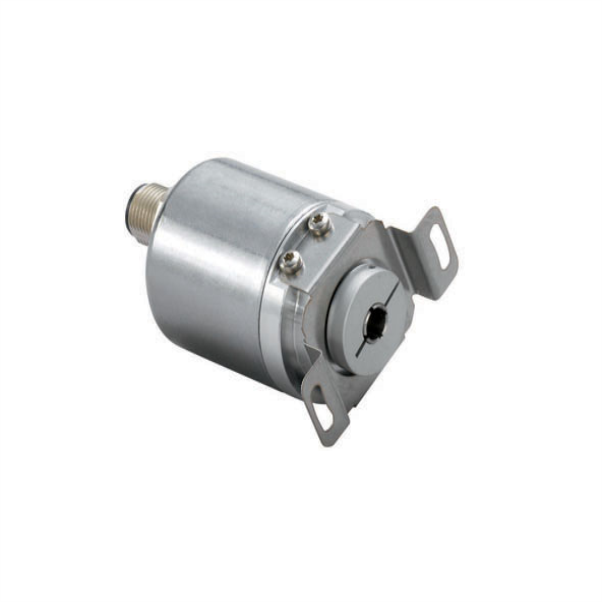

Absolute Magnetic Rotary Encoder Industrial Duty Analog 4-20mA Output
SKU: UCD-AC005-0413-VCS0-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial use, the Posital Fraba Absolute Magnetic Rotary Encoder UCD-AC005-0413-VCS0-PAM is a sturdy and dependable sensor.
With a 4-20mA analog output and precise position feedback, this encoder is perfect for settings where precise and reliable measurements are essential.
High durability and resilience to environmental elements including dust, moisture, and vibrations are guaranteed by its magnetic sensing technology.
Long-term stability and performance in demanding industrial situations are provided by the encoder's robust construction.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Analog Current (4-20mA).
Supply Voltage: 8 – 32 VDC.
Current Consumption: Typical 20 mA @ 24 V (no load).
Start-Up Time: < 500 ms.
Max Load Resistance: 500 Ω.
Analog Accuracy: ±20 µA @ 20 mA.
Linearity: 0.15%.
Settling Time: 32 ms (from min value to max value jump).
Reverse Polarity Protection: Yes.
Short Circuit Protection: Yes.
EMC Compliance: Emitted Interference DIN EN 61000-6-4, Noise Immunity DIN EN 61000-6-2.
MTTF: 240.8 years @ 40 °C.
Sensor Specifications:
Technology: Magnetic.
Resolution: Single turn 13 bit, Multiturn 4 bit.
Multiturn Technology: Self-powered magnetic pulse counter (no battery, no gear).
Accuracy (INL): ±0.0878° (≤ 12 bit).
Code: Analog Current 4 – 20 mA.
Cycle Time: Base Sensor < 100 µs.
Minimum Measurement Range: 0 – 11.25°.
Resolution of Output: Max. 13 bits over entire measuring range.
Environmental Specifications:
Protection Class (Shaft and Housing): IP68/IP69K.
Operating Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Mechanical Data:
Housing Material: Stainless Steel V4A (1.4404, 316 L).
Flange Type: Synchro, ø 42 mm Heavy Duty.
Shaft Type: Solid, Length = 20 mm, Diameter ø 10 mm (0.39").
Shaft Material: Stainless Steel V4A (1.4112, 440 B), hardened.
Max. Shaft Load: Axial 300 N, Radial 300 N.
Minimum Mechanical Lifetime: 7.6 (300N / 300 N), 10 (270 N / 270 N), 200 (100 N / 100 N) revolutions.
Friction Torque: ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F).
Max. Permissible Mechanical Speed: ≤ 6000 1/min.
Shock Resistance: ≤ 200 g (half sine 11 ms, EN 60068-2-27).
Permanent Shock Resistance: ≤ 30 g (half sine 16 ms, EN 60068-2-29).
Vibration Resistance: ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6).
Length: 69 mm (2.72").
Weight: 410 g (0.90 lb).
Electrical Connection:
Connection Orientation: Radial.
Connector: M12, Male, 5 pin, a coded.
