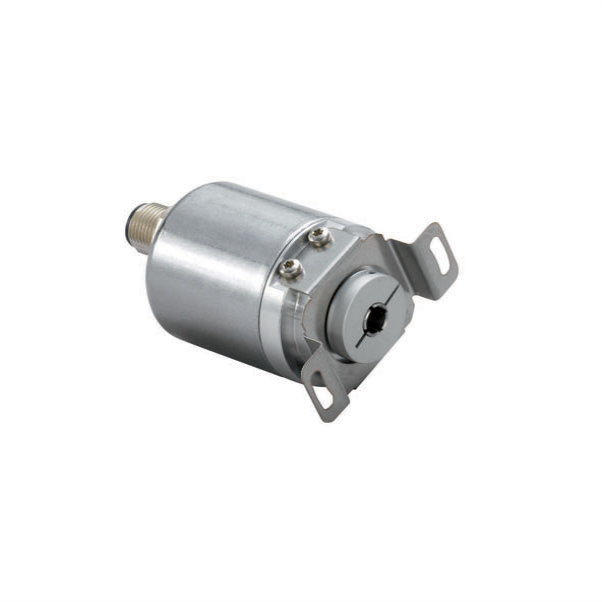

Absolute Magnetic Rotary Encoder Industrial Duty Analog 0-10 VDC Voltage Output
SKU: UCD-AV002-0013-VCS0-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For precise position feedback in a variety of industrial applications, the Posital Fraba Absolute Magnetic Rotary Encoder Industrial Duty Analog 0-10 VDC Voltage Output, model UCD-AV002-0013-VCS0-PAM, is a high-precision instrument.
This encoder provides accurate and dependable single-turn position readings by utilizing cutting-edge magnetic technology.
Long-term performance even in challenging conditions is guaranteed by its sturdy design, which includes a stainless-steel shaft and a long-lasting housing.
The encoder may be integrated into a variety of control systems since it has an analog voltage output of 0–10 VDC.
This encoder's excellent resolution and dependability make it perfect for applications that need accurate and consistent position control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Analog Voltage 0-10 VDC.
Supply Voltage: 8 – 32 VDC.
Current Consumption: Typical 15 mA @ 24 V (no load).
Power Consumption: ≤ 2.5 W.
Start-Up Time: < 500 ms.
Protection Class: IP65 (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Resolution: 13-bit single turn.
Accuracy: ±0.0878° (≤ 12 bit).
Shaft Diameter: 12 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N.
Mechanical Lifetime: Up to 430 x 10^8 revolutions.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz).
Housing Material: aluminium with cathodic corrosion protection.
Connection Type: Axial Connector M12, Male, 5 pin, a coded.
Weight: 145 g.
