Absolute Magnetic Rotary Encoder Industrial Duty Analog 0-10 VDC Voltage Output
SKU: UCD-AV002-0413-R100-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

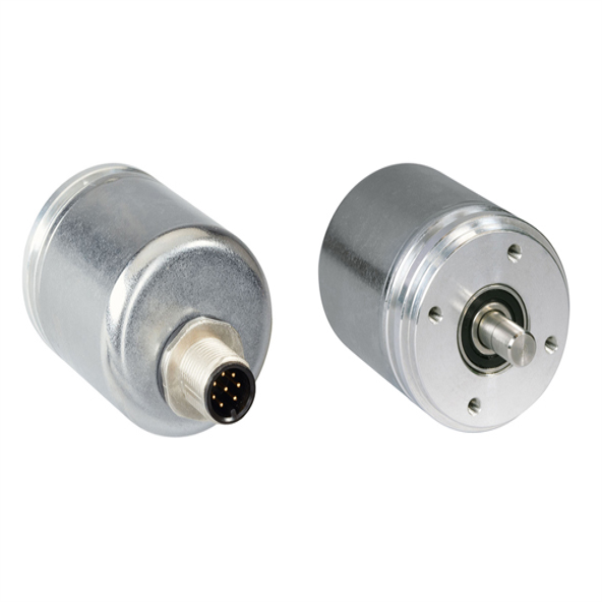

The UCD-AV002-0413-R100-PAM Posital Fraba Absolute Magnetic Rotary Encoder is designed for industrial settings requiring accurate position feedback.
With its 0–10 VDC analog voltage output, this encoder can be used with a variety of control systems.
Its remarkable endurance and tolerance to environmental elements including dust, moisture, and vibrations are guaranteed by its magnetic sensing technology.
This sturdy encoder is made to provide dependable operation in challenging industrial settings, guaranteeing precision and stability over the long run.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Analog Voltage (0-10 VDC).
Supply Voltage: 8 – 32 VDC.
Current Consumption: Typical 15 mA @ 24 V (no load).
Start-Up Time: < 500 ms.
Min Load Resistance: 5 kΩ.
Analog Accuracy: ±10 mV @ 10 V.
Linearity: 0.15%.
Settling Time: 32 ms (from min value to max value jump).
Reverse Polarity Protection: Yes.
Short Circuit Protection: Yes.
EMC Compliance: Emitted Interference DIN EN 61000-6-4, Noise Immunity DIN EN 61000-6-2.
MTTF: 300.9 years @ 40 °C.
Sensor Specifications:
Technology: Magnetic.
Resolution: Single turn 13 bit.
Accuracy (INL): ±0.0878° (≤ 12 bit).
Code: Analog Voltage 0 – 10 V.
Cycle Time: Base Sensor < 100 µs.
Minimum Measurement Range: 0 – 22.5°.
Resolution of Output: Max. 13 bits over entire measuring range.
Environmental Specifications:
Protection Class (Shaft): IP65.
Protection Class (Housing): IP65.
Operating Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Mechanical Data:
Housing Material: Steel.
Housing Coating: Cathodic corrosion protection (>720 hrs salt spray resistance).
Flange Type: Synchro, ø 36 mm.
Flange Material: aluminium.
Shaft Type: Solid, Length = 20 mm.
Shaft Diameter: ø 10 mm (0.39").
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N
Minimum Mechanical Lifetime: 30 (20 N / 40 N), 10 (40 N / 60 N), 7 (40 N / 80 N), 3 (40 N / 110 N) revolutions.
Friction Torque: ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F).
Max. Permissible Mechanical Speed: ≤ 12000 1/min.
Shock Resistance: ≤ 100 g (half sine 6 ms, EN 60068-2-27).
Permanent Shock Resistance: ≤ 10 g (half sine 16 ms, EN 60068-2-29).
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6).
Length: 56 mm (2.20").
Weight: 160 g (0.35 lb).
Electrical Connection:
Connection Orientation: Axial.
Connector: M12, Male, 5 pin, a coded.
