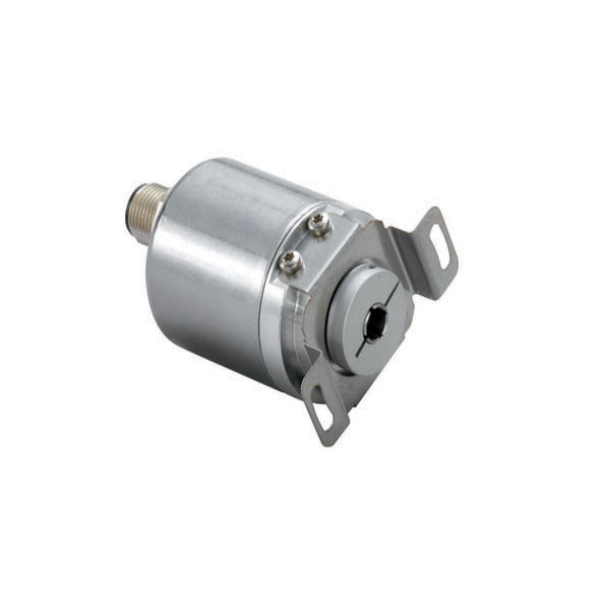

Absolute Magnetic Rotary Encoder CANopen, 13-bit 8192 steps per revolution
SKU: UCD-CA01B-1213-VCS0-PAM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For accurate and dependable position measurement in industrial applications, the POSITAL FRABA Absolute Magnetic Rotary Encoder with CANopen interface (model UCD-CA01B-1213-VCS0-PAM) was created.
This encoder is perfect for a variety of automation and control systems because it uses magnetic technology to offer precise single-turn position feedback.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: CANopen (DS-406).
Resolution: Single turn, 13-bit (8192 steps per revolution).
Output Driver: Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers.
Supply Voltage: 9 – 30 VDC.
Current Consumption: ≤ 65 mA @ 10 V DC, ≤ 60 mA @ 24 V DC.
Power Consumption: ≤ 1.2 W.
Reverse Polarity Protection: Yes.
Short Circuit Protection: Yes.
EMC Compliance:
Emitted Interference: DIN EN 61000-6-4.
Noise Immunity: DIN EN 61000-6-2.
MTTF: 240 years @ 40°C.
Accuracy (INL): ±0.0878° (≤ 13 bit).
Code: Binary.
Protection Class (Shaft): IP68/IP69K.
Protection Class (Housing): IP68/IP69K.
Operating Temperature: -40°C to +85°C.
Storage Temperature: -40°C to +85°C.
Humidity: 98% RH, no condensation.
Housing Material: Steel.
Housing Coating: Cathodic corrosion protection (>720 hrs salt spray resistance).
Flange Type: Synchro, ø 36 mm.
Flange Material: Aluminium.
Shaft Type: Solid, Length = 20 mm.
Shaft Diameter: ø 10 mm.
Shaft Material: Stainless Steel V4A (1.4112, 440 B), hardened.
Max. Shaft Load: Axial 180 N, Radial 180 N.
Minimum Mechanical Lifetime:
10 (180 N / 180 N).
15 (150 N / 150 N).
30 (100 N / 100 N) (10^8 revolutions with Fa/Fr).
Rotor Inertia: ≤ 30 gcm².
Friction Torque: ≤ 5 Ncm @ 20°C.
Max. Permissible Mechanical Speed: ≤ 6000 1/min.
Shock Resistance: ≤ 200 g (half sine 11 ms, EN 60068-2-27).
Permanent Shock Resistance: ≤ 30 g (half sine 16 ms, EN 60068-2-29).
Vibration Resistance: ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6).
Length: 56 mm.
Weight: 245 g.
Electrical Connection: M12, Male, 5 pin, A-coded, with LED.
Certification: CE + cULus + E1.
