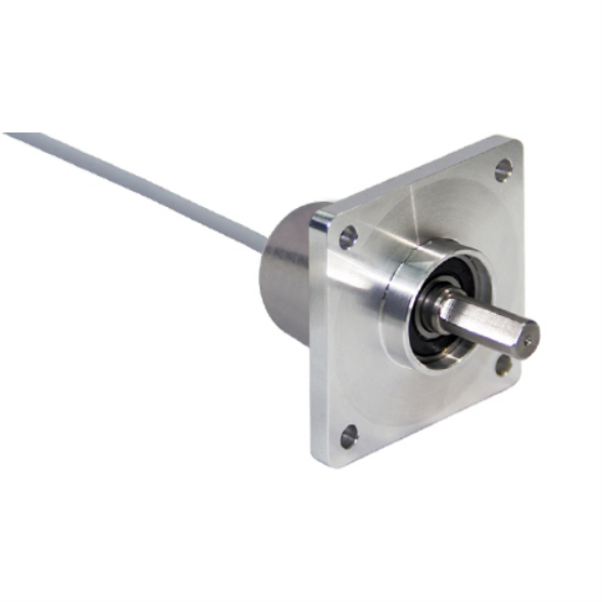

63mm Square Flange Programmable Encoder - 9 3mm Solid Shaft
SKU: UCD-IPH00-XXXXX-4A7S-2AW
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Posital Fraba 63mm Square Flange Programmable Encoder, model UCD-IPH00-XXXXX-4A7S-2AW, has a 9.3mm solid shaft and is a high-precision, multipurpose tool for a range of industrial uses.
The programmable incremental interface of this encoder enables the adjustment of parameters including counting direction, output type, and pulses per revolution (PPR).
Its sturdy solid shaft and long-lasting aluminium housing guarantee dependable operation even in harsh conditions.
Easy setup and changes are made possible by the encoder's compatibility with the UBIFAST configuration tool.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Programmable Incremental.
Programming Functions: PPR (1-16384), Output, Counting Direction.
Configuration Tool: UBIFAST Configuration Tool (Version ≥ 1.6.3).
Output Driver: Push-Pull (HTL).
Supply Voltage: 4.75 – 30 VDC.
Current Consumption: ≤ 140 mA @ 5 V DC, ≤ 70 mA @ 10 V DC, ≤ 40 mA @ 24 V DC.
Power Consumption: ≤ 1.0 W.
Start-Up Time: < 1 s.
Protection Class: IP65 (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Accuracy: ±0.0878° (≤ 12 bit).
Shaft Diameter: 9.3 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N.
Mechanical Lifetime: Up to 430 x 10^8 revolutions.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz).
Housing Material: aluminium with wet coating and cathodic corrosion protection.
Connection Type: Radial Connector M12, Male, 8 pin, a coded.
Weight: 285 g.
