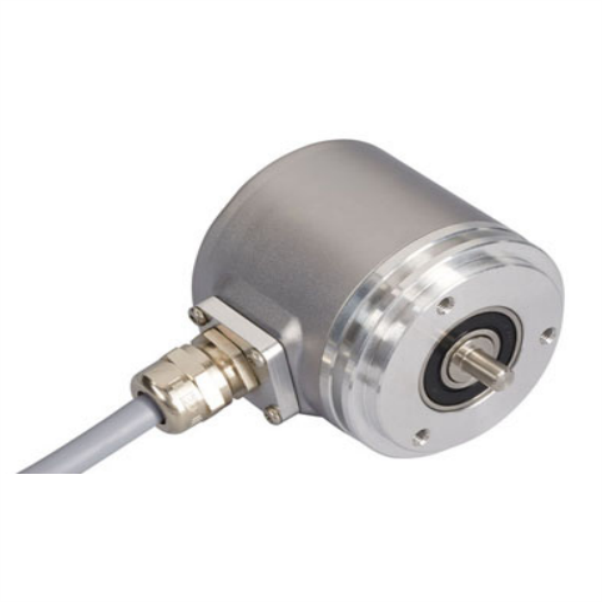

Solid Shaft Programmable Encoder Radial Cable - 10mm Solid Shaft
SKU: UCD-IPH00-XXXXX-Y10S-2RW
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A flexible and configurable incremental encoder, the Posital Fraba UCD-IPH00-XXXXX-Y10S-2RW is made for accurate position and speed measurement in industrial settings.
With its radial cable connection and 10mm solid shaft, this encoder can be used in a variety of mechanical configurations.
Because this encoder is programmable, it is possible to alter the output type, counting direction, and pulse per revolution (PPR) settings to suit the needs of certain applications.
Durability and dependable performance in difficult situations are guaranteed by its sturdy structure.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: UCD-IPH00-XXXXX-Y10S-2RW.
Type: Programmable incremental encoder.
Shaft Diameter: 10 mm solid shaft.
Connection Orientation: Radial cable.
Resolution: Programmable from 1 to 16,384 pulses per revolution (PPR).
Interface: Incremental.
Output Driver: Push-Pull (HTL).
Supply Voltage: 4.75 – 30 V DC.
Programming Functions: PPR, output type, counting direction.
Configuration Tool: UBIFAST Configuration Tool (Version ≥ 1.6.3).
Housing Material: Aluminium.
Protection Class: IP65 (shaft), IP66/IP67 (housing).
Operating Temperature: -30°C to +80°C.
Max. Rotational Speed: 12,000 rpm.
Shock Resistance: 100 g, 6 ms.
Vibration Resistance: 10 g, 10-2000 Hz.
Cable Length: 2 meters.
Weight: 285 g.
