Universal-Range Mild Steel-Power Coated with Mild Steel Locks, UDF20-9-6
SKU: UDF20-9-6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
USF/UDF UNIVERSAL RANGE:
IP42 Indoor Rating.

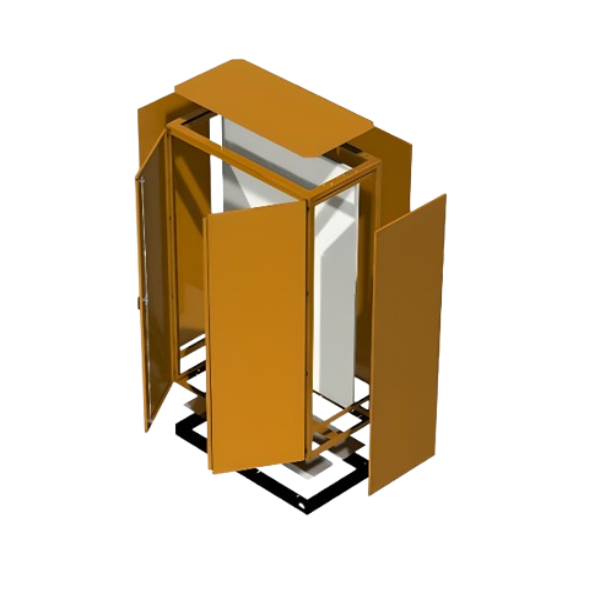

Use: Control panels and universal drives. including detachable side coverings for a modular design that is simple to bolt together.
Its perforated frame makes it simple to alter the chassis and cross pillars, making it adaptable to a wide range of uses.
Seal: Doors have a continuous rubber seal.
Foam is UL 50, UL 50E and is FERMAPOR K31-A-9021-2 with K31-B-5.
Locks: three-point locking mechanism.
Earthing: not at all.
Paint with a 60–80-micron thickness. The powder has UV protection and is intended for outdoor use.
White powder coating on the mounting plate.
Gland Plate: Standard in base, please specify if top entry; galvanized or electro galvanized.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions:
Height: 2000mm.
Width: 900mm.
Depth: 600mm.
Gland Plate Openings: (W) 751 (D) 451
Openings: 1
Chassis:
Size: (H) 1900 (W) 838
Max Depth: 720
Min Depth: 120
Hardware Outer door:
No of Locks: 1
No of Hinges: 8
Door Split:
LHS: 450
RHS: 450
