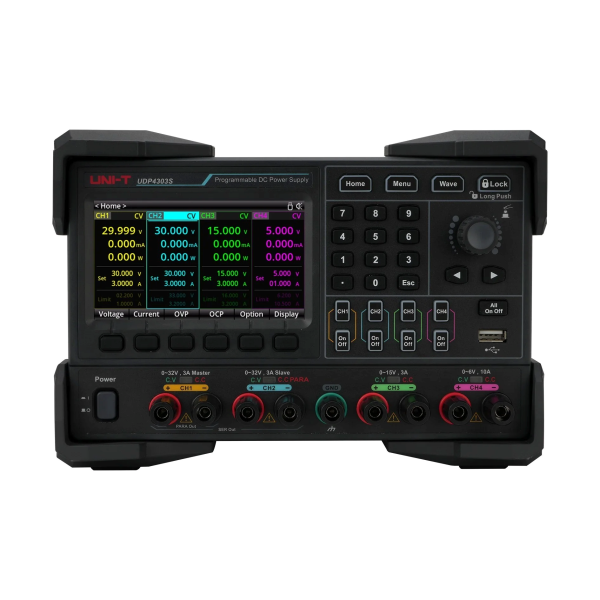

Programmable Linear Power Supplies, UDP4303S 4Ch Precision Linear DC Power Supply
SKU: UDP4303S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UDP4303S Series, Programmable Linear Power Supplies:
4-channel isolation.
4.3-inch true colour LCD.
One-touch output in series and parallel.
Waveform measurement and presentation.
8 kSa/s of high-speed sampling.
Rapid transient response time: <50 μs.
either a 4-wire or 2-wire remote sense.
The list and delayer support up to 512 outputs with a minimum programming time of 1 MS.
Command processing time: <10 MS.
Supports auto range testing for both big and small currents.
Web and host computer control.
Multi-protection: OVP, OCP, OTP, and sense protection, as well as quick overcurrent protection.
The protection time is customizable (0 MS to 1000 MS).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UDP4303S Series, Programmable Linear Power Supplies.
Channels 4Ch.
Power Supply Type DC Linear.
Max V DC 32V.
Max A DC 3A.
Watts 297W.
Max V Resolution 1mV.
Max A Resolution 1μA.
Programmable true.
Max A DC 3A.
Max A Resolution 1μA.
Touchscreen No.
Warranty 3 years.
Product Dimensions (L x W x H) 12 in x 14 in x 18 in.
Product Weight 27 lb.
Certifications CE/cTUVus.
