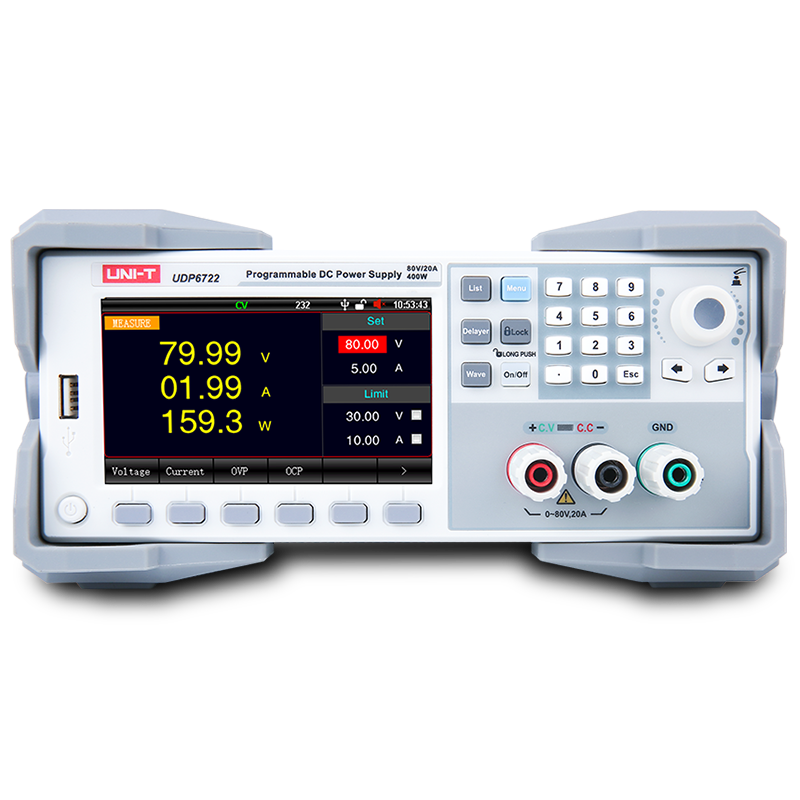

Programmable Switching Power Supplies, UDP6723, DC, 1-Channel
SKU: UDP6723
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
UDP6720 Series, Programmable Switching Power Supplies:
Wide-ranging production.
High-precision four-digit voltage/current display.
10 mV/10 mA is the resolution.
Multiple OVP, OCP, and OTP safeguards.
It is possible to set the protection value for overvoltage and overcurrent.
Function for remote compensation.
4.3" TFT LCD with genuine colour.
Save and remember one hundred configurations.
USB, LAN, RS232, and RS485.
Protocol SCPI/MODBUS-RTU.
There are 200 List/Delay sets.
Waveform visualization.
U-Disk recording and updating.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UDP6720 Series, Programmable Switching Power Supplies.
Output voltage 0-80V.
Output current 0-40A.
Output power 850W.
Standard interfaces RS232, RS485, USB Host, USB Device, LAN.
Power AC:220(±10%) V, 50Hz/60Hz.
Display 4.3-inch TFT LCD.
Product net weight 5.9kg.
Product size (W×H×D) 215mm×88mm×475mm.
Resolution Voltage 10mV.
Resolution Current 10Ma.
