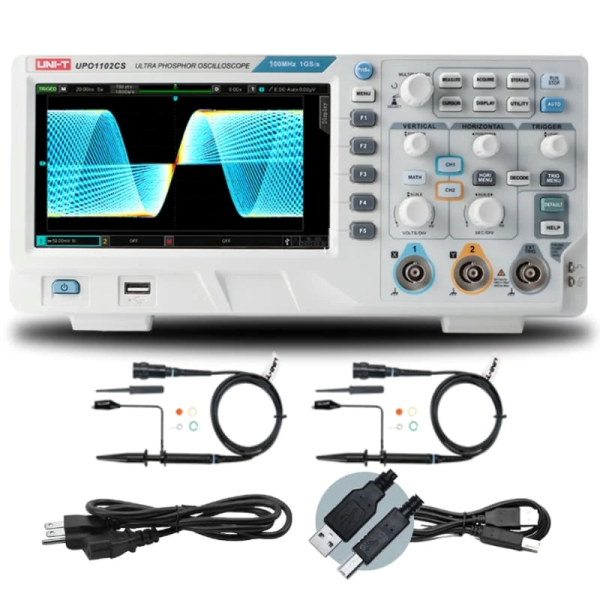

Digital Oscilloscopes, UPO1102CS 100MHz 2Ch DSO
SKU: UPO1102CS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
UPO1000CS Series, Digital Oscilloscopes:
1 GSa/s in real-time sample rate per channel, with two analog channels.
Bandwidth: 100 MHz and 200 MHz
Memory depth: 56 Mpts (per channel).
The waveform capturing rate can reach 150,000 wfms/s.
256-level intensity grading display.
Alternative trigger.
Low noise floor, with a minimum vertical gear of 1 mV per division.
There are several trigger modes available, as well as serial bus trigger and real-time decoding options.
Record waveforms for 100,000 frames.
7-inch TFT LCD with WVGA resolution.
Interfaces include USB Host, USB Device, LAN, EXT Trig, and AUX.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
UPO1000CS Series, Digital Oscilloscopes.
Scope Type DSO.
Bandwidth 100MHz
Channels 2Ch.
Scope Sample Rate 1.0GSa/s.
Memory Depth 56Mpts.
Refresh Rate 500,000wfms/s.
Vertical Scale @1MΩ 1V/div to 20V/div.
Automatic Measurements 36.
Included Bus Protocols RS232 UART I2C SPI CAN LIN.
Optional Bus Protocols None.
Logic Pod Included Not Available.
Signal Generator Function Not Available.
Frequency Meter 7-bit.
Display Size (in) 7in.
Touchscreen No.
Warranty 3 years.
Product Dimensions (L x W x H) 12 in x 4 in x 5 in.
Product Weight 7 lb.
Certifications CE/cETLus/UKCA.
