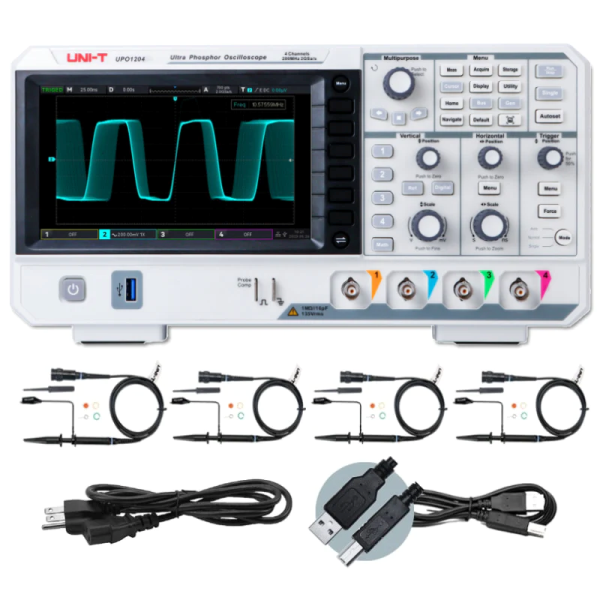

Digital Oscilloscopes, UPO1204 200MHz 4Ch DSO

Pricing available on request UPO1000 Series, Digital Oscilloscopes: Analog channel bandwidths: 200 MHz, 100 MHz, and 50 MHz Number of analog channels: four. Maximum sampling rate: 2 GSa/s. Vertical scale: 500 μV/div–20 V/div. Low noise floor (<100 μVrms). Memory depth: 56 Mpts/CH. Waveform capture rate is up to 500,000 wfms/s. 120,000 frames of waveforms are recorded in real time using hardware. It can automatically measure 36 different types of waveform properties; the measuring range is optional: screen or cursor area. 7-bit hardware frequency meter. DVM allows for four-channel real RMS measurement. The FFT function has been improved by 1 million points. Real-time decoding with RS232, I2C, and SPI full memory hardware. Supports waveform navigation, markers, and segments. Support SCPI-programmable instrument standard commands. Support web access and control.
