Wall mount polyester enclosure with transparent lid, UR-CA-33
SKU: UR-CA-33
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

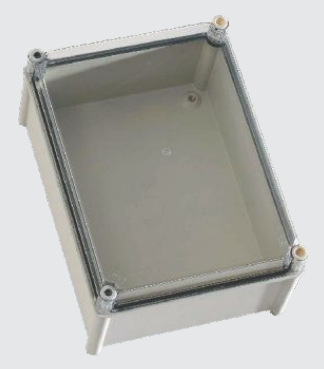

For electrical and electro-mechanical applications, the Uriarte Safybox UR-CA-33 Wall Mount Single Door Polyester Enclosure is made to offer strong protection.
With its excellent resistance to impact and environmental elements, this enclosure can be used both indoors and outdoors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body: Glass-reinforced polyester (GRP).
Cover: Transparent polycarbonate.
Colour: Light grey (RAL 7035) and transparent.
Construction:
Monobloc body and door made with fiberglass-reinforced polyester.
Hinged door with a keyed lock.
Suitable for wall mounting.
Protection:
Ingress Protection: IP66, ensuring excellent protection against dust and water.
Impact Resistance: IK10.
Self-extinguishing: GWT 960º.
UV-stabilized for outdoor use.
Dimensions:
Height: 270 mm.
Width: 270 mm.
Depth: 170 mm.
Weight: 1.53 kg.
Technical Data:
Ingress Protection: IP66.
Standards: IEC 62208.
Temperature Range: -25ºC to 60ºC.
Mounting: Suitable for wall mounting with provided accessories.
Door Opening: 180º.
Applications:
Suitable for outdoor use and environments such as the food industry or medical environments where aggressive detergents are used for cleaning.
Applicable in sectors like electrical, telecommunications, water, gas, and PV solutions.
