      USB to RS232 Serial Converter

      SKU: US232R-100

      Out of stock

      Availability: Out of Stock

      Short Description

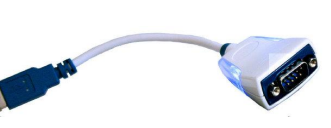

      Pricing available on request Description: The durable USB-Serial adapter, model number US232R, is intended for usage in a variety of environments. The collection of communication devices that make up the USB-RS232 adaptor cables. The US232R model offers a straightforward way to convert older serial devices with RS232 interfaces to USB ports. A compact internal electrical circuit board that makes use of the FTDI FT232R is housed inside a durable plastic enclosure that can tolerate a wide variety of industrial temperatures in each US232R adapter. TXD/RXD LEDs and RS232 level shifters are additional integrated electronics that show data flow via the adapter visually. A regular USB-A device connector is integrated into the cable so that it can be connected to a hub port or upstream host. Modem handshake signals and other RS232-level signals are accessible through an industry-standard DE-9P connector. 1 MBaud is the maximum data rate at the RS232 level. To make the US232R adapter cable appear as a Virtual COM Port (VCP), USB device drivers are required. This makes it possible for current serial communications applications, like HyperTerminal, to communicate with legacy RS232 peripheral devices by sending data over the US232R.
      US232R-100
      Alternative image 1
      Specifications: Cable length: 100cm Operating temperature of -20°C to +80°C Special high gloss white finish enclosure design. Side-lit blue RXD and TXD traffic indicators. Quality 4-layer PCB design. Features: Adds one RS-232 serial port by connecting to USB. Enhanced RS232 transceiver gives serial port speed of up to 1MBaud. Gold plated USB and DB9 connectors for enhanced connection reliability. Integral 10cm (US232R-10) or 100cm (US232R-100) or 500cm (US232R-500) USB cable with molded strain relief. Easy plug and play installation and RS-232 device connection. Works with USB 1.1 and 2.0 Host and Hub ports. Industry Standard FTDI chip set and device drivers for maximum compatibility. Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers. Installs as a standard Windows COM port. COM port number can be changed to any available COM port number, including COM1 to COM4, to support HyperTerminal, or any other serial communications software application running in Windows. FIFO: 128 bytes transmit buffer; 256 bytes receive buffer. RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND Powered by USB port. No external power adapter required. Serial Communication Parameters Parity: None, Even, Odd Data bits: 7, 8 Flow control: RTS/CTS, DSR/DTR, X-ON/X-OFF, None Stop bits 1,2. The US232R is a lead-free device that complies with the following environmental directives: RoHS, WEEE, REACH, PFOS and DecaBDE.
