Electrical Power Tools, UT-CS07, AC/DC 1000A Clamp sensor
SKU: UT-CS07
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Current Clamp 100A (10mV/A)~1000A (1mV/A) AC/DC,
• Jaw Opening 35mm,
• Output Ratio 10mV/A & 1mV/A,
• Wire Length 1.1m,
• True RMS (depends on the Multi-meter),
• Reponse Time (Depends on the Multimeter),
• Accuracy (Depends on the Multimeter),
• Frequency (ACA) 45Hz~400Hz,
• Suits most Uni-T Meters,
• 1m Drop Test,
• Connects Through "mV",
• Connect Through "AC Sensor",
• Power Supply 1.5V AAAx2,
• CAT III 1500V; CAT IV 600V
Buy currently uses Select Automation shop pricing and checkout.

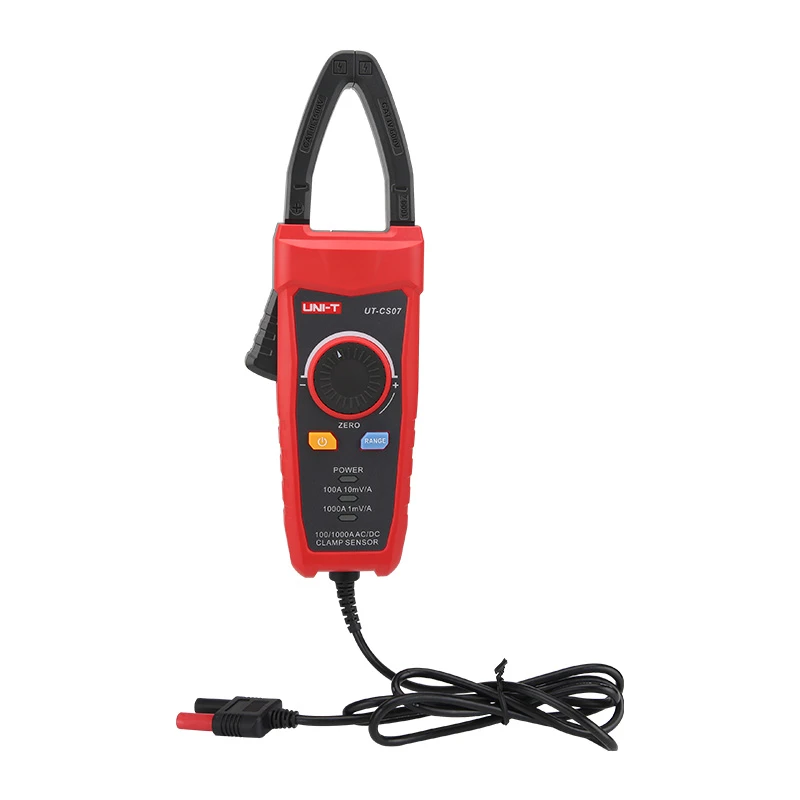

UT-CS07 AC/DC 1000A Clamp sensor
• The UT-CS07 is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement.
• It measures current through the sensor and converts the current value into a voltage value.
• The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value.
• It can measure up to 1,000 A of AC/DC current.
• With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.
