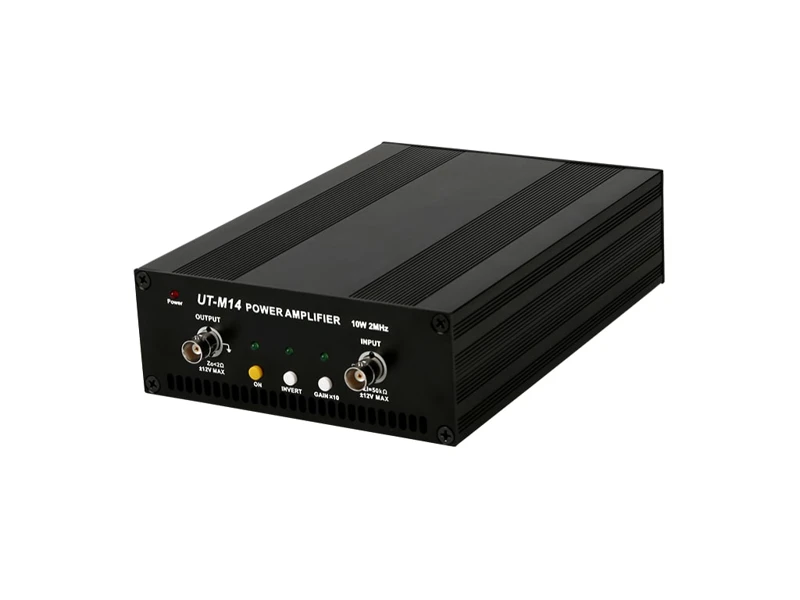

Power Amplifier, UT-M14, (50 kΩ)
SKU: UT-M14
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Power amplifier module for UTG series
• Signal Input
• Input Impedance: 50 kΩ
• External Input: ±12 Vmax (Gain x1); ±1.25 Vmax (Gain x10)
• Amplifier Index
• Operating Mode: Constant voltage
• Gain: Switching x1, x10 (DC gain error < ±5%±30 mV)
• Polarity Switching: In-phase / Reverse phase
• Sine Output Power RMS (RL=7.5 Ω): Maximum 10W (Typical value, input sinewave, 100 kHz, x10)
• Output Voltage: 12. 5 Vpeak (Input sine wave, 100 kHz)
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Power amplifier module for UTG series
• Signal Input
• Input Impedance: 50 kΩ
• External Input: ±12 Vmax (Gain x1); ±1.25 Vmax (Gain x10)
• Amplifier Index
• Operating Mode: Constant voltage
• Gain: Switching x1, x10 (DC gain error < ±5%±30 mV)
• Polarity Switching: In-phase / Reverse phase
• Sine Output Power RMS (RL=7.5 Ω): Maximum 10W (Typical value, input sinewave, 100 kHz, x10)
• Output Voltage: 12. 5 Vpeak (Input sine wave, 100 kHz)
