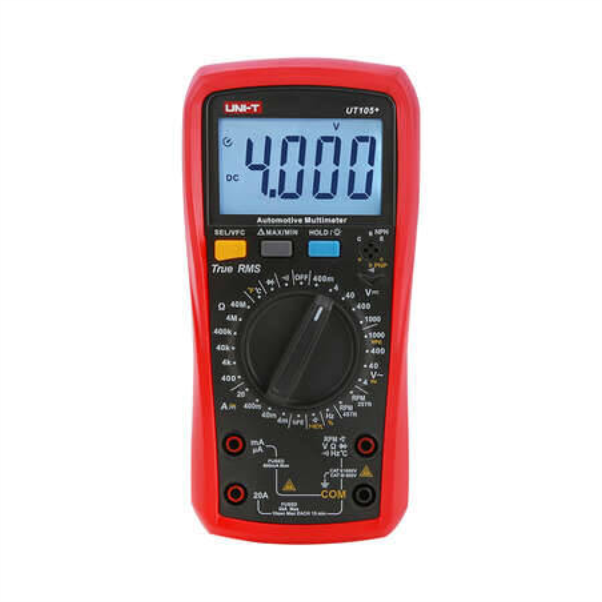

Digital Multimeters, UT105+, Automotive Multimeter High Precision True RMS Automobile
SKU: UT105-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A True RMS automotive digital multi meter, the UT105+ is intended for high-precision testing and troubleshooting of both conventional and hybrid automobiles.
It can measure AC/DC voltage up to 1000V and AC/DC current up to 10A, with a maximum measurement time of 10 seconds for 20A.
In addition to temperature, resistance, frequency, duty cycle, diode, and transistor testing, the UT105+ has specific automotive features including dwell angle and RPM measuring.
It can be used for car maintenance, vehicle diagnostics, and electrical troubleshooting since it has features like VFC voltage measurement, data hold, relative mode, backlight, and high-voltage and large-current alerts.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
20 A AC/DC current measurement for a maximum of 10 seconds.
VFC voltage measurement up to 1000 V.
Measures resistance.
Measures frequency.
Measures temperature.
Measures duty cycle.
RPM measurement for 2-stroke and 4-stroke engines.
Dwell angle measurement for 1-to-8-cylinder engines.
Diode testing function.
Transistor testing function.
Continuity testing function with audible buzzer.
Data hold function.
Relative measurement mode.
Manual ranging function.
Backlight function.
High-voltage alarm function.
High-voltage overload alarm function.
Large-current alarm function.
Low-battery indication.
Automatic power-off function.
4000-count display.
Input protection.
Suitable for conventional vehicle diagnostics and maintenance.
Suitable for hybrid vehicle testing and troubleshooting.
Suitable for automotive electrical system testing.
Suitable for testing fuses, switches, solenoids and relays.
Suitable for charging system, fuel system and engine sensor testing.
Specifications:
DC Voltage: 400 mV / 4 V / 40 V / 400 V / 1000 V.
DC Voltage Accuracy: ± (0.5% + 3).
AC Voltage: 4 V / 40 V / 400 V / 1000 V.
AC Voltage Accuracy: ± (0.8% + 3).
AC Current: 4 mA / 40 mA / 400 mA / 10 A; 20 A for 10 seconds maximum.
AC Current Accuracy: ± (1.0% + 8).
DC Current: 4 mA / 40 mA / 400 mA / 10 A; 20 A for 10 seconds maximum.
DC Current Accuracy: ± (0.8% + 8).
Resistance: 400 Ω / 4 k Ω / 40 k Ω / 400 k Ω / 4 MΩ / 40 MΩ.
Resistance Accuracy: ± (0.8% + 3).
Frequency: 10 Hz–10 MHz
Frequency Accuracy: ± (0.1% + 5).
Temperature: -40°C to 1000°C.
Temperature Accuracy: ± (1.0% + 3).
VFC Voltage: 1000 V.
VFC Accuracy: ± (2.0% + 10).
RPM: 2-stroke and 4-stroke.
RPM Accuracy: ± (3.0% + 5) for 2-stroke; ± (3.0% + 3) for 4-stroke.
Dwell Angle: 1-to-8-cylinder engines.
Dwell Angle Range: 1CYL 0–356.4°; 2CYL 0–178.2°; 3CYL 0–118.8°; 4CYL 0–89.1°; 5CYL 0–71.3°; 6CYL 0–59.4°; 8CYL 0–44.5°.
Dwell Angle Accuracy: ± (3.0% + 5).
Display Count: 4000.
Manual Range: Yes.
True RMS: Yes.
Data Hold: Yes.
MAX/MIN/Relative Mode: Yes.
Duty Cycle: Yes.
Continuity/Diode/Transistor Testing: Yes.
Backlight: Yes.
Auto Power-Off: 15 minutes.
Power Supply: 2 × 1.5 V AAA batteries.
Product Colour: Red and Grey.
Product Dimensions: 183 × 88 × 56 mm.
