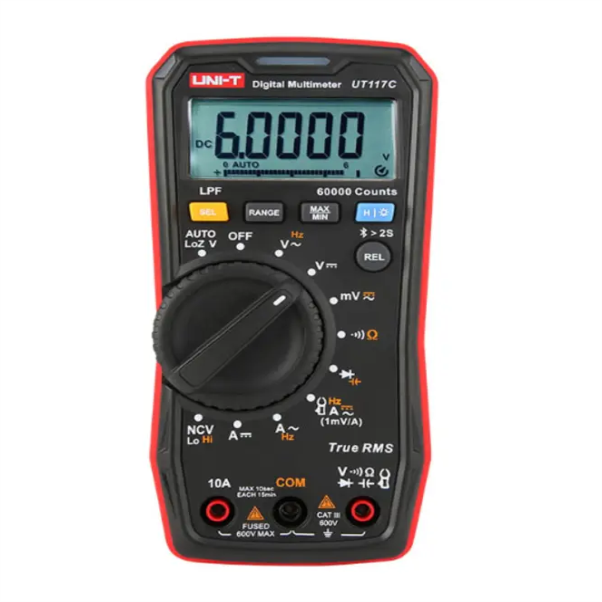

Digital Multimeters, UT117C, High-precision True RMS Digital Multimeter
SKU: UT117C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
For quick, precise, and practical electrical and electronic testing, the UT117C is a high-precision True RMS digital multi meter.
With LoZ, LPF, and Auto Volt features for more measurement adaptability, it can measure AC/DC voltage up to 600V and AC/DC current up to 10A.
A 60,000-count display, Bluetooth connectivity, support for external current clamps, audible and visual alerts, NCV detection, data hold, MAX/MIN, and relative measurement functions are all characteristics of the UT117C.
It is appropriate for electronic electricians, electrical repair, and troubleshooting applications due to its small size and 2 m drop resistance.
Buy currently uses Select Automation shop pricing and checkout.
Features:
60,000-count high-precision display.
True RMS measurement.
Measures AC voltage up to 600 V.
Measures DC voltage up to 600 V.
Measures AC current up to 10 A.
Measures DC current up to 10 A.
Loz voltage measurement function.
Low-pass filter (LPF) voltage measurement function.
Auto Volt function.
Frequency measurement function.
Resistance measurement function.
Capacitance measurement function.
Non-contact voltage (NCV) detection.
Continuity testing function.
Diode testing function.
External current clamp support.
Bluetooth connectivity for app-based measurement and monitoring.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
Manual and automatic ranging functions.
Audible and visual warning indicators.
High-voltage warning function.
Low-battery indication.
Automatic power-off function.
LCD backlight.
2 m drop-test resistance.
Compact design for easy and convenient operation.
Suitable for electronic electricians.
Suitable for electrical maintenance and troubleshooting.
Suitable for general electrical and electronic testing.
Specifications:
AC Voltage: 600.00 mV / 6.0000 V / 60.000 V / 600.00 V.
AC Voltage Accuracy: ± (1% + 30).
DC Voltage: 600.00 mV / 6.0000 V / 60.000 V / 600.00 V.
DC Voltage Accuracy: ± (0.3% + 10).
AC Current: 6.0000 A / 10.000 A.
AC Current Accuracy: ± (1.5% + 30).
DC Current: 6.0000 A / 10.000 A.
DC Current Accuracy: ± (0.5% + 10).
Auto-V LoZ: 600.0 V.
Auto-V LoZ Accuracy: ± (1% + 3).
LPF Voltage (ACV): 600.0 V.
LPF Voltage Accuracy: ± (2% + 3).
Frequency: 99.99 Hz / 999.9 Hz / 9.999 kHz / 50.00 kHz.
Frequency Accuracy: ± (0.01% + 3).
Resistance: 600.00 Ω to 6.0000 MΩ / 40.000 MΩ.
Resistance Accuracy: ± (0.5% + 5) up to 6.0000 MΩ; ± (3% + 5) at 40.000 MΩ.
Capacitance: 1000 nF / 10.00 μF / 100.0 μF / 1000 μF / 10000 μF.
Capacitance Accuracy: ± (1.9% + 5) up to 100.0 μF; ± (2.5% + 5) at 1000 μF and 10000 μF.
Display Count: 60,000.
External Current Clamp: Supported.
External Clamp Ratio: 1 mV/A.
Continuity and Diode Test: Yes.
NCV Detection: Yes.
Data Hold: Yes.
Manual/Auto Range: Yes.
MAX/MIN: Yes.
Relative Mode: Yes.
High-Voltage Warning: Yes.
Audible and Visual Indication: Yes.
Low-Battery Indication: Yes.
Automatic Power-Off: 15 minutes.
LCD Backlight: Yes.
Bluetooth: Yes.
Drop Test: 2 m.
Power Supply: 3 × 1.5 V AAA batteries.
Product Dimensions: 169 × 84 × 48.8 mm.
