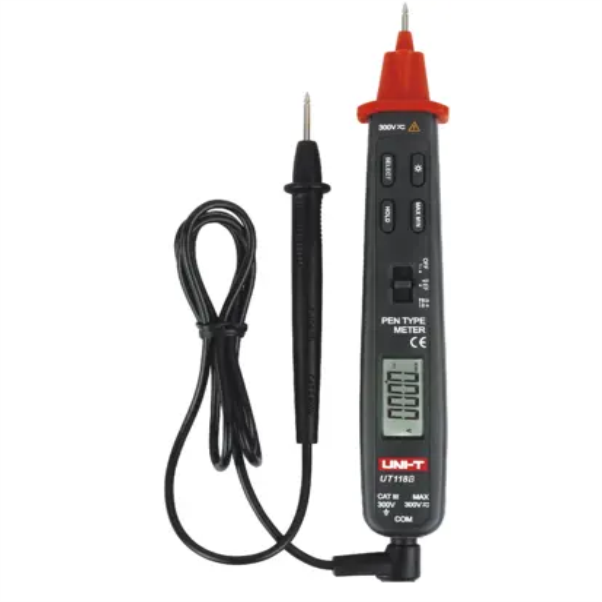

Digital Multimeters, UT118B, 300V Pen Type Digital Multimeter
SKU: UT118B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT118B is a sturdy and lightweight 300V pen-style digital multi meter intended for general electrical and electronic testing, do-it-yourself projects, and home appliance maintenance.
In addition to Auto SCAN and automatic range detection, it has a quick sample rate of four times per second for rapidly recording measurement values.
The UT118B has diode testing, continuity testing, non-contact voltage detection, data hold, MAX/MIN measurement, LCD backlight, and automatic power-off features in addition to measuring AC/DC voltage, resistance, and capacitance.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures DC voltage up to 300 V.
Measures AC voltage up to 300 V.
Measures resistance up to 30 MΩ.
Measures capacitance up to 3 mF.
Auto SCAN measurement mode.
Automatic range identification function.
Auto-ranging function.
Non-contact voltage detection (EF function).
Diode testing function.
Continuity testing with audible buzzer.
Data hold function.
MAX/MIN measurement modes.
LCD backlight.
Low-battery indication.
Automatic power-off function.
Fast sampling rate of 4 times per second.
Input impedance of ≥10 MΩ for DC voltage measurement.
Compact and lightweight pen-type design.
Suitable for home appliance repair.
Suitable for DIY electrical and electronic testing.
Suitable for general electrical troubleshooting and maintenance.
Specifications:
DC Voltage: 300 V.
DC Voltage Accuracy: ± (1% + 3).
AC Voltage: 300 V.
AC Voltage Accuracy: ± (1% + 4).
Resistance: 3 MΩ in SCAN mode / 30 MΩ in AUTO mode.
Resistance Accuracy: ± (1% + 3).
Capacitance: 300 μF in SCAN mode / 3 mF in AUTO mode.
Capacitance Accuracy: ± (3% + 5).
Display Count: 3000.
Sampling Rate: 4 times/s.
Auto Range: Yes.
Auto SCAN: Yes.
EF/NCV Function: Yes.
Diode Test: Yes.
Continuity Buzzer: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
LCD Backlight: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: 10 minutes.
Input Impedance for DC Voltage: ≥10 MΩ.
Power Supply: 3 V battery (CR2032).
Display Size: 28 × 14 mm.
Product Dimensions: 20 × 27 × 182 mm.
