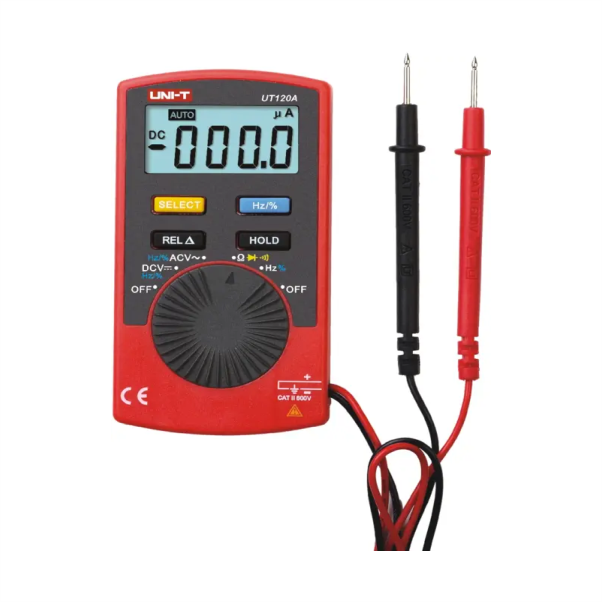

Digital Multimeters, UT120A, Pocket Size Multimeters
SKU: UT120A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Electronics engineers and do-it-yourselves may debug electronic systems and circuits using the UT120A, a straightforward, compact, pocket-sized digital multi meter.
It can measure AC/DC voltage up to 600V, resistance up to 40MΩ, and frequency up to 10MHz.
A 4000-count display, automated range, duty cycle measurement, diode and continuity testing, data hold, relative mode, and automatic power-off are among the features of the UT120A.
It is easy to carry and appropriate for routine electrical and electronic testing due to its thin 10.8mm construction.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures resistance up to 40 MΩ.
Measures frequency up to 10 MHz
Measures duty cycle from 0.1% to 99.9%.
Diode testing function.
Continuity testing with audible buzzer.
Auto-ranging function.
Data hold function.
Relative measurement mode.
Low-battery indication.
Automatic power-off function.
4000-count display.
Input impedance of approximately 10 MΩ for DC voltage measurement.
Compact and lightweight pocket-size design.
Suitable for DIY electrical and electronic testing.
Suitable for electronics engineers and circuit troubleshooting.
Suitable for electronic system development and maintenance.
Suitable for general electrical measurement and diagnostics.
Specifications:
DC Voltage: 600 V.
DC Voltage Accuracy: ± (0.8% + 1).
AC Voltage: 600 V.
AC Voltage Accuracy: ± (1.2% + 3).
Resistance: 40 MΩ.
Resistance Accuracy: ± (1% + 2).
Frequency: 10 MHz
Frequency Accuracy: ± (0.5% + 3).
Duty Cycle: 0.1%–99.9%.
Display Count: 4000.
Auto Range: Yes.
Diode Test: Yes.
Continuity Buzzer: Yes.
Data Hold: Yes.
Relative Mode: Yes.
Low-Battery Indication: ≤2.4 V.
Auto Power-Off: 30 minutes.
Input Impedance for DC Voltage: 10 MΩ.
Power Supply: 3 V battery (CR2032).
Display Size: 43 × 22 mm.
Product Dimensions: 110 × 58.2 × 10.8 mm.
