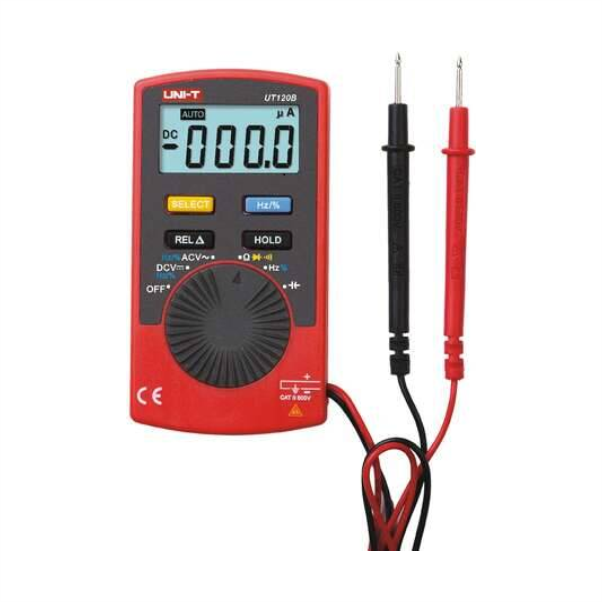

Digital Multimeters, UT120B, 600V Pocket Size Digital Multimeter
SKU: UT120B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT120B is a 600V pocket-sized digital multi meter that is ideal for DIY enthusiasts, electronics engineers, and general electrical testing.
It can measure resistance up to 40MΩ, frequency up to 10MHz, and AC/DC voltage up to 600V.
A 4000-count display, automated range, duty cycle measuring, diode and continuity testing, data hold, relative mode, and automatic power-off are among the features of the UT120B.
It is portable and ideal for routine electrical and electronic troubleshooting due to its thin 10.8mm thick construction.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures resistance up to 40 MΩ.
Measures frequency up to 10 MHz
Measures duty cycle from 0.1% to 99.9%.
Diode testing function.
Continuity testing with audible buzzer.
Auto-ranging function.
Data hold function.
Relative measurement mode.
Low-battery indication.
Automatic power-off function.
4000-count display.
Input impedance of approximately 10 MΩ for DC voltage measurement.
Compact and lightweight pocket-size design.
Slim 10.8 mm-thick body.
Suitable for DIY electrical and electronic testing.
Suitable for electronics engineers and circuit troubleshooting.
Suitable for electronic system development and maintenance.
Suitable for general electrical measurement and diagnostics.
Specifications:
DC Voltage: 600 V.
DC Voltage Accuracy: ± (0.8% + 1).
AC Voltage: 600 V.
AC Voltage Accuracy: ± (1.2% + 3).
Resistance: 40 MΩ.
Resistance Accuracy: ± (1% + 2).
Frequency: 10 MHz
Frequency Accuracy: ± (0.5% + 3).
Duty Cycle: 0.1%–99.9%.
Display Count: 4000.
Auto Range: Yes.
Diode Test: Yes.
Continuity Buzzer: Yes.
Data Hold: Yes.
Relative Mode: Yes.
Low-Battery Indication: ≤2.4 V.
Auto Power-Off: 30 minutes.
Input Impedance for DC Voltage: 10 MΩ.
Power Supply: 3 V battery (CR2032).
Display Size: 43 × 22 mm.
Product Dimensions: 110 × 58.2 × 10.8 mm.
