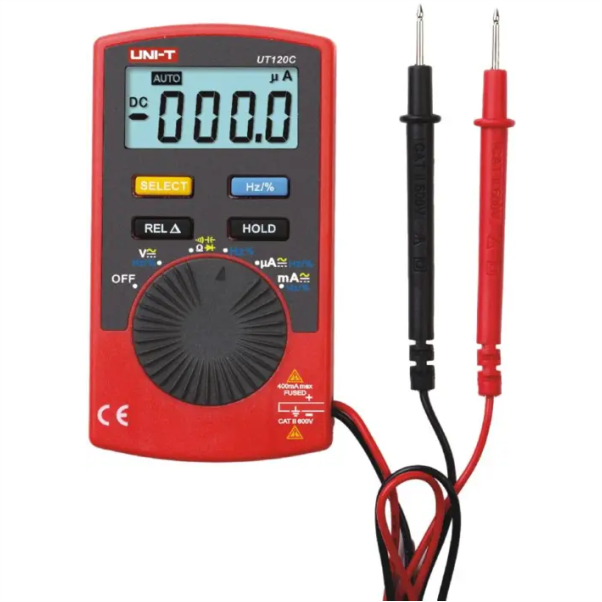

Digital Multimeters, UT120C, Pocket Size Multimeters
SKU: UT120C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT120C is a pocket-sized digital multi meter ideal for hobbyists, electronics engineers, and basic electrical testing.
It can detect AC/DC voltage and current up to 600V, as well as resistance, capacitance, frequency, and duty cycle.
The UT120C has a 4000-count display, automated range, True RMS measurement, diode and continuity testing, data hold, relative mode, an LCD backlight, and automatic power off.
Its small and lightweight form makes it ideal for general electrical and electronic troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 600 V.
Measures AC voltage up to 600 V.
Measures DC current.
Measures AC current.
Measures resistance.
Measures capacitance.
Measures frequency.
Measures duty cycle.
Diode testing function.
Continuity testing with audible buzzer.
Auto-ranging function.
Data hold function.
Relative measurement mode.
LCD backlight.
Low-battery indication.
Automatic power-off function.
4000-count display.
Compact and lightweight pocket-size design.
Slim portable body for convenient carrying.
Suitable for DIY electrical and electronic testing.
Suitable for electronics engineers and circuit troubleshooting.
Suitable for electronic system development and maintenance.
Suitable for general electrical measurement and diagnostics.
Specifications:
DC Voltage: 400 mV / 4 V / 40 V / 400 V / 600 V.
DC Voltage Accuracy: ± (0.5% + 2).
AC Voltage: 4 V / 40 V / 400 V / 600 V.
AC Voltage Accuracy: ± (1.2% + 3).
DC Current: 400 μA / 4 mA / 40 mA / 400 mA / 4 A.
DC Current Accuracy: ± (1.0% + 2).
AC Current: 400 μA / 4 mA / 40 mA / 400 mA / 4 A.
AC Current Accuracy: ± (1.5% + 5).
Resistance: Up to 40 MΩ.
Resistance Accuracy: ± (1.0% + 2).
Capacitance: Up to 4 mF.
Capacitance Accuracy: ± (4% + 5).
Frequency: Up to 10 MHz
Frequency Accuracy: ± (0.1% + 3).
Duty Cycle: 0.1%–99.9%.
Display Count: 4000.
True RMS: Yes.
Auto Range: Yes.
Diode Test: Yes.
Continuity Buzzer: Yes.
Data Hold: Yes.
Relative Mode: Yes.
LCD Backlight: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: Yes.
Power Supply: 3 V battery (CR2032).
Product Dimensions: 110 × 58.2 × 10.8 mm.
