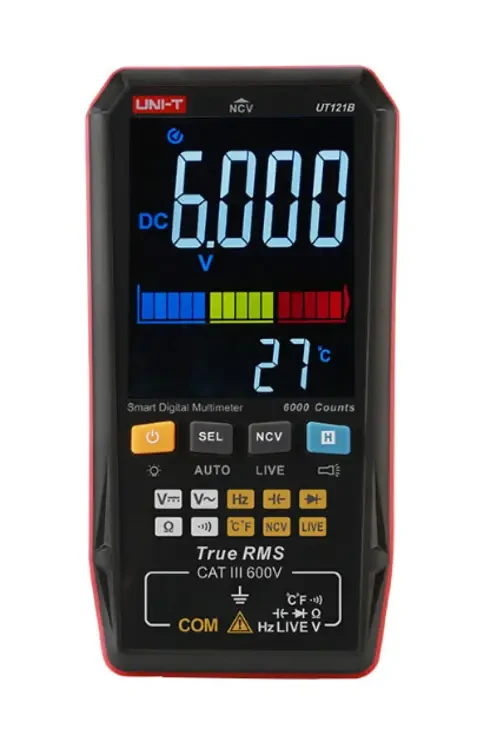

Digital Multimeters, UT121B, Smart Digital Multimeters
SKU: UT121B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT121B is a True RMS smart digital multi meter with a big display, an ultra-thin 19 mm housing, and intelligent measurement function detection.
It can measure AC voltage up to 750 V, DC voltage up to 1000 V, resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 10MHz.
The UT121B also features dual-display measurement, auto-ranging, NCV and LIVE detection, diode and continuity testing, a flashlight, data hold, and full-scale input protection.
Its tiny size makes it ideal for home use, DIY projects, electrical repair, and general troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures AC voltage up to 750 V.
Measures DC voltage up to 1000 V.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 10 MHz
Intelligent identification of measurement functions.
Dual-display function for displaying two measurement results simultaneously.
Auto-ranging function.
Non-contact voltage (NCV) detection.
LIVE wire detection function.
Diode testing function.
Continuity testing with audible buzzer.
LCD high-voltage alert.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
Data hold function.
Full-scale input protection.
6000-count display.
Large LCD screen.
Ultra-thin 19 mm body.
Compact and portable design.
Suitable for home electrical testing.
Suitable for DIY electrical and electronic applications.
Suitable for electrical maintenance and troubleshooting.
Suitable for general electrical measurement and diagnostics.
Specifications:
AC Voltage: 6.000 V / 60.00 V / 600.0 V / 750.0 V.
AC Voltage Accuracy: ± (1.5% + 3).
AC Voltage Frequency: 10 Hz–1 kHz.
AC Voltage Frequency Accuracy: ± (0.5% + 2).
DC Voltage: 6.000 V / 60.00 V / 600.0 V / 1000.0 V.
DC Voltage Accuracy: ± (1.2% + 3).
Resistance: 600.0 Ω / 6.000 k Ω / 60.00 k Ω / 600.0 k Ω / 60.00 MΩ.
Resistance Accuracy: ± (2% + 5).
Capacitance: 60.00 nF / 600.0 nF / 600.0 μF / 6000 μF / 60.0 mF.
Capacitance Accuracy: ± (10% + 5).
Frequency: 10.00 Hz–10.00 MHz
Frequency Accuracy: ± (0.1% + 3).
Display Count: 6000.
Dual Display: Yes.
Auto Range: Yes.
NCV Detection: Yes.
LIVE Detection: Yes.
Diode Test: Yes.
Continuity Buzzer: Yes.
LCD High-Voltage Alert: Yes.
Flashlight: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: Yes.
Data Hold: Yes.
Input Protection: Full-scale input protection.
Power Supply: 2 × 1.5 V AAA batteries.
Display Size: 52 × 66 mm.
Product Dimensions: 143 × 74 × 17 mm.
