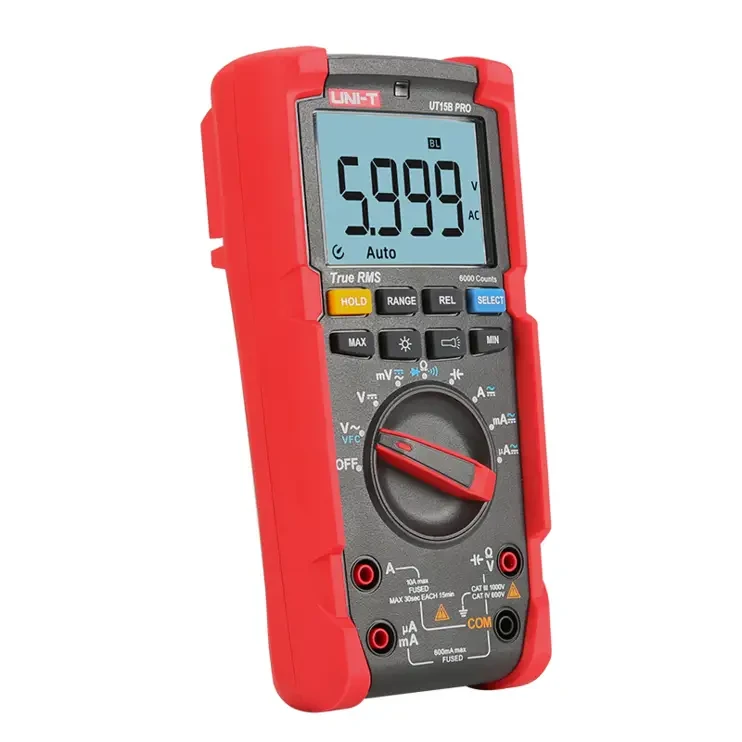

Digital Multimeters, UT15B PRO, 1000V True RMS Digital Multimeter PRO Series
SKU: UT15B-PRO
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT15B PRO is a PRO Series 1000V True RMS digital multi meter that is extremely dependable, safe, and long-lasting.
It measures AC/DC voltages up to 1000V and VFC voltages up to 600V and has a 6000-count display for better measurement resolution.
The UT15B PRO has full-range 1000V input protection and 8kV transient voltage protection, which assist protect the meter from abrupt high-voltage shocks.
It also has auto backlight, flashlight, data hold, MAX/MIN, and relative measurement functions, making it ideal for electricians and electrical troubleshooting tasks.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures AC current up to 10 A.
Measures DC current up to 10 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 6000 μF.
VFC voltage measurement up to 600 V.
Continuity testing function.
Diode testing function.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
Auto ranging and manual ranging functions.
Auto backlight function.
Built-in flashlight.
Low-battery indication.
Automatic power-off function.
Audible and visual alarm functions.
Full-range input protection.
8 kV transient voltage protection.
6000-count display.
1 m drop-test resistance.
Compact and durable handheld design.
Suitable for electricians and electrical technicians.
Suitable for electrical maintenance and troubleshooting.
Suitable for voltage measurement and general electrical testing.
Specifications:
Meter Type: True RMS Digital Multi meter.
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.5% + 3).
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (1% + 3).
AC Current: 10 A.
AC Current Accuracy: ± (1% + 3).
DC Current: 10 A.
DC Current Accuracy: ± (0.8% + 3).
Resistance: 60 MΩ.
Resistance Accuracy: ± (0.5% + 2).
Capacitance: 6000 μF.
Capacitance Accuracy: ± (2% + 5).
VFC Voltage: 600 V.
Display Count: 6000.
True RMS: Yes.
Auto/Manual Range: Yes.
Continuity/Diode Test: Yes.
Data Hold: Yes.
MAX/MIN: Yes.
Relative Mode: Yes.
Auto Backlight: Yes.
Flashlight: Yes.
Low-Battery Indication: Yes.
Auto Power-Off: 15 minutes.
Drop Test: 1 m.
Transient Voltage Protection: 8 kV.
Input Protection: Full-range 1000 V.
Power Supply: 2 × 1.5 V AA batteries.
Product Dimensions: 195 × 95 × 58 mm.
