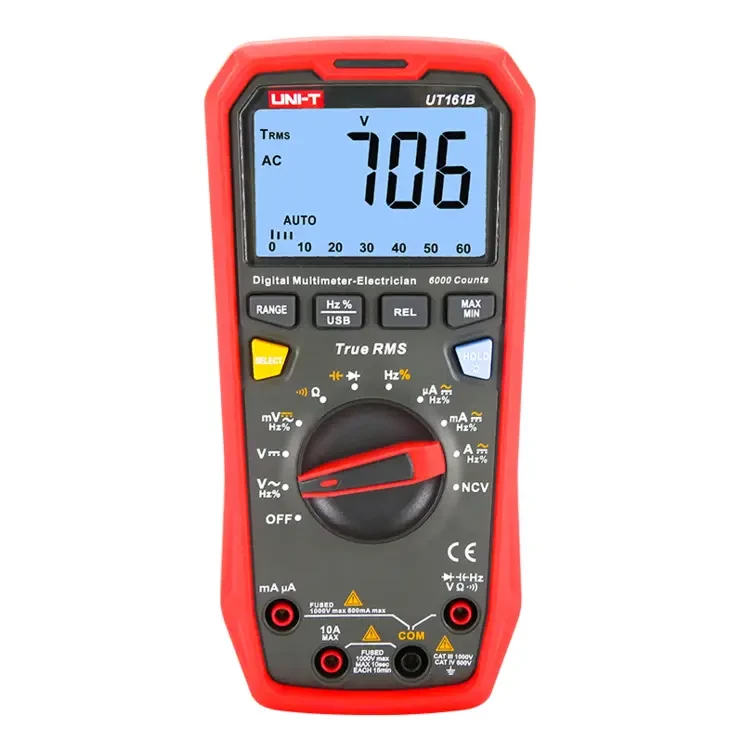

Digital Multimeters, UT161B, 1000V True RMS Digital Multimeter
SKU: UT161B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The UT161B is a dependable 1000V True RMS digital multi meter intended for electrical and electronic measurements, maintenance, and troubleshooting.
It can measure AC/DC voltage up to 1000V, current up to 10A, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 10 MHz
The UT161B has a 6000-count display, auto-ranging, USB connectivity, NCV detection with audible and visual alerts, data hold, backlight, MAX/MIN and relative measurement modes, diode and continuity checking, and input protection.
It is appropriate for electrical and electronic users that require precise measurements and additional safety measures.
Buy currently uses Select Automation shop pricing and checkout.
Features:
True RMS measurement.
Measures DC voltage up to 1000 V.
Measures AC voltage up to 1000 V.
Measures DC current up to 10 A.
Measures AC current up to 10 A.
Measures resistance up to 60 MΩ.
Measures capacitance up to 60 mF.
Measures frequency up to 10 MHz
Measures duty cycle from 0.1% to 99.9%.
Diode testing function.
Continuity testing function.
Non-contact voltage (NCV) detection.
Audible and visual NCV alarm.
Data hold function.
MAX/MIN measurement function.
Relative measurement mode.
LCD backlight.
Auto-ranging function.
USB communication interface.
Input protection.
Low-battery indication.
Automatic power-off function.
6000-count display.
31-segment analogue bar graph.
Compact and portable handheld design.
Suitable for electrical installation and maintenance.
Suitable for electronics testing and troubleshooting.
Suitable for general electrical measurement and diagnostics.
Specifications:
Meter Type: True RMS Digital Multi meter.
AC Voltage: 1000 V.
AC Voltage Accuracy: ± (1% + 3).
DC Voltage: 1000 V.
DC Voltage Accuracy: ± (0.5% + 3).
AC Current: 10 A.
AC Current Accuracy: ± (1.2% + 5).
DC Current: 10 A.
DC Current Accuracy: ± (1% + 2).
Resistance: 60 MΩ.
Resistance Accuracy: ± (1% + 2).
Capacitance: 60 mF.
Capacitance Accuracy: ± (3% + 5).
Frequency: 10 MHz
Frequency Accuracy: ± (0.1% + 4).
Duty Cycle: 0.1%–99.9%.
Duty Cycle Accuracy: ± (2% + 5).
Display Count: 6000.
Bandwidth: 40 Hz–500 Hz.
Analogue Bar Graph: 31 segments.
True RMS: Yes.
NCV Detection: Yes.
NCV Alarm: Audible and visual.
Data Hold: Yes.
Backlight: Yes.
MAX/MIN/Relative Mode: Yes.
USB Communication: Yes.
Diode Test: Yes.
Continuity Test: Yes.
Input Protection: Yes.
Power Supply: 4 × 1.5 V R03 batteries.
Product Dimensions: 190 × 90 × 50 mm.
